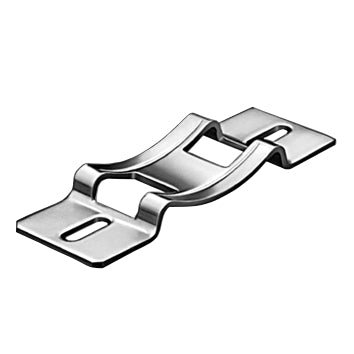

- Product: NORMAFIX® K1 bracket for clamp mounting
- Material: W1 – Steel
- Geometry: K1
- Clamping ranges: 40–62 mm to 443–493 mm (15 sizes)
- Compatible with: NORMACLAMP® TORRO®, A, HD, S and GBS standard clamps
- Mounting: Open standard clamp, thread band through bracket slots – done
- Note: Bracket only – order suitable clamps separately
Product Description ▼
The NORMAFIX® K1 bracket is the ideal solution for quickly and easily converting NORMACLAMP® standard clamps into mounting clamps with brackets. Thanks to the clever plug-in design, just a few steps are required: open the standard clamp, thread the band through the bracket slots – and the assembly is complete.
NORMAFIX® K1 brackets are made of high-quality W1 steel and are available in K1 geometry. They enable reliable and stable fastening in numerous industrial applications and are compatible with common NORMACLAMP® standard clamps.
- Easiest installation – open clamp, thread band, done
- Compatible with common NORMACLAMP® standard clamps – GBS, HD, S/SP and TORRO®
- High-quality W1 steel construction for reliable fastening
- Pre-fabricated brackets – no elaborate special production necessary
- K1 geometry – custom-fit for standardized applications
- Wide range of sizes – 15 clamping ranges from 40–62 mm to 443–493 mm
- Industrial pipe and hose assembly
- Mechanical and plant engineering
- Wherever standard clamps need to be quickly converted into mounting clamps with brackets
- NORMAFIX® K1 bracket in the selected size (clamping range)
Technical Data ▼
| Dimensions NORMAFIX® K1 | ||||||||
|---|---|---|---|---|---|---|---|---|
| Size | Clamping range (mm) | A (mm) | B (mm) | S (mm) | d (mm) | E (mm) | h (mm) | L (mm) |
| 0 | 40–62 | 21 | 85 | 62 | 9 | 40 | 13 | 8 |
| 1 | 63–80 | 26 | 100 | 82 | 9 | 50 | 15 | 18 |
| 2 | 81–110 | 26 | 152 | 132 | 9 | 60 | 24 | 32 |
| 3 | 101–118 | 31,5 | 214 | 190 | 11 | 60 | 34 | 32 |
| 4 | 119–136 | 31,5 | 320 | 290 | 11 | 60 | 48 | 32 |
| 5 | 137–163 | 120 | 400 | – | – | – | – | – |
| 6 | 163–180 | 156 | – | – | – | – | – | – |
| 7 | 181–207 | 236 | – | – | – | – | – | – |
| 8 | 208–234 | 300 | – | – | – | – | – | – |
| 9 | 235–259 | 400 | – | – | – | – | – | – |
| 10 | 261–298 | – | – | – | – | – | – | – |
| 11 | 300–337 | – | – | – | – | – | – | – |
| 12 | 339–389 | – | – | – | – | – | – | – |
| 13 | 391–441 | – | – | – | – | – | – | – |
| 14 | 443–493 | – | – | – | – | – | – | – |
| Compatible NORMACLAMP® Standard Clamps | |
|---|---|
| Clamp | Band width (mm) |
| NORMACLAMP® TORRO® | 12 |
| NORMACLAMP® A | 14 |
| NORMACLAMP® HD | 16 |
| NORMACLAMP® S | 15, 20, 25, 30 |
| NORMACLAMP® GBS | 18, 20, 25, 30 |
