- Product: 45° Silicone Elbow with Polyester Reinforcement
- Material / Construction: Silicone with Polyester Reinforcement (VMQ, 3–4 layers)

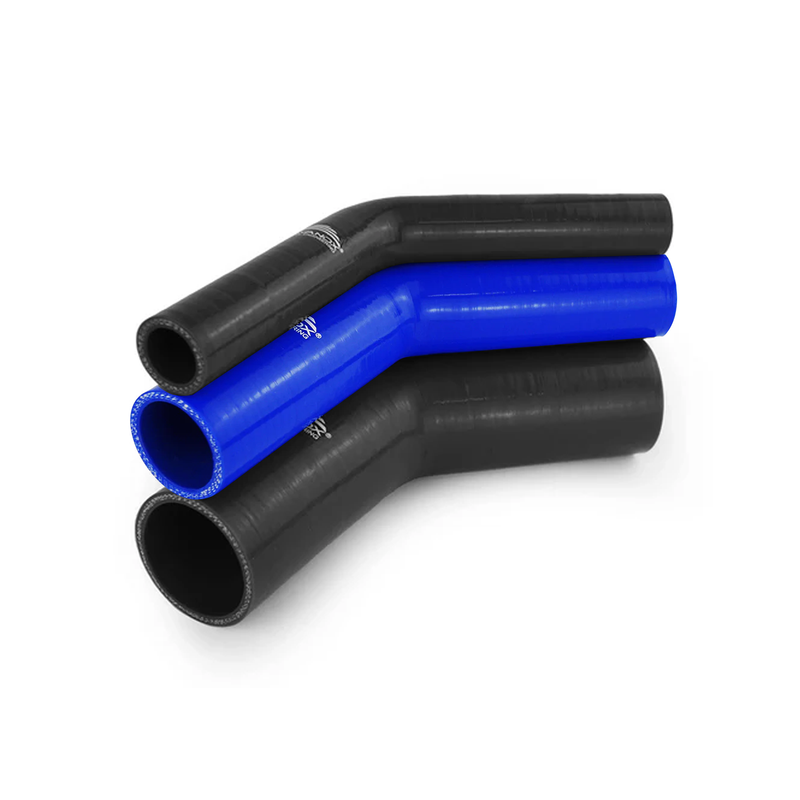

- Variants: many inner diameters (Ø 13–102 mm) + colour selectable (Black / Blue)

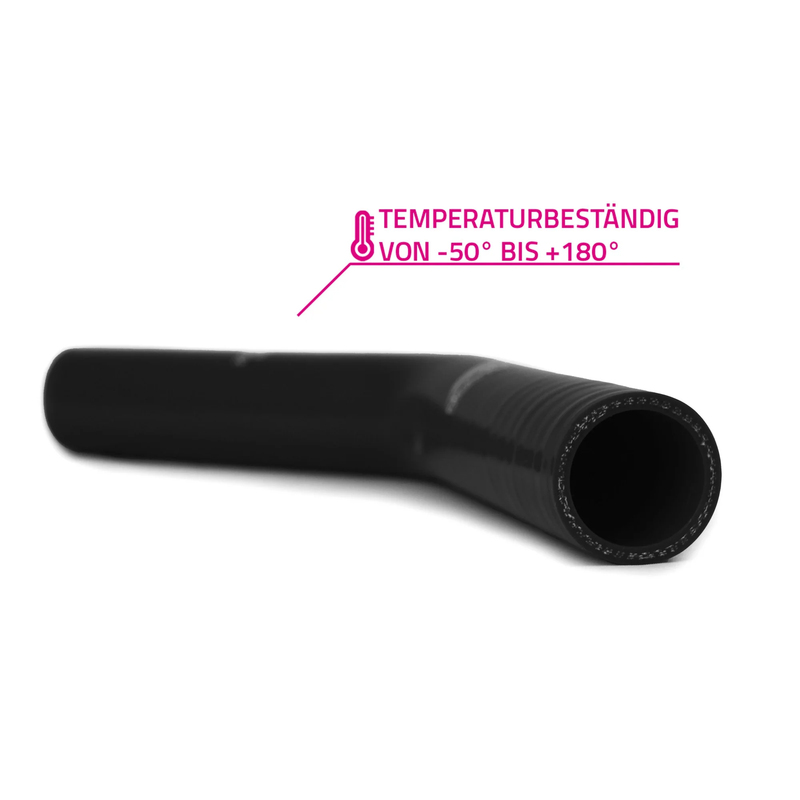

- Temperature Range: approx. -50 °C to +180 °C (short-term up to +220 °C)

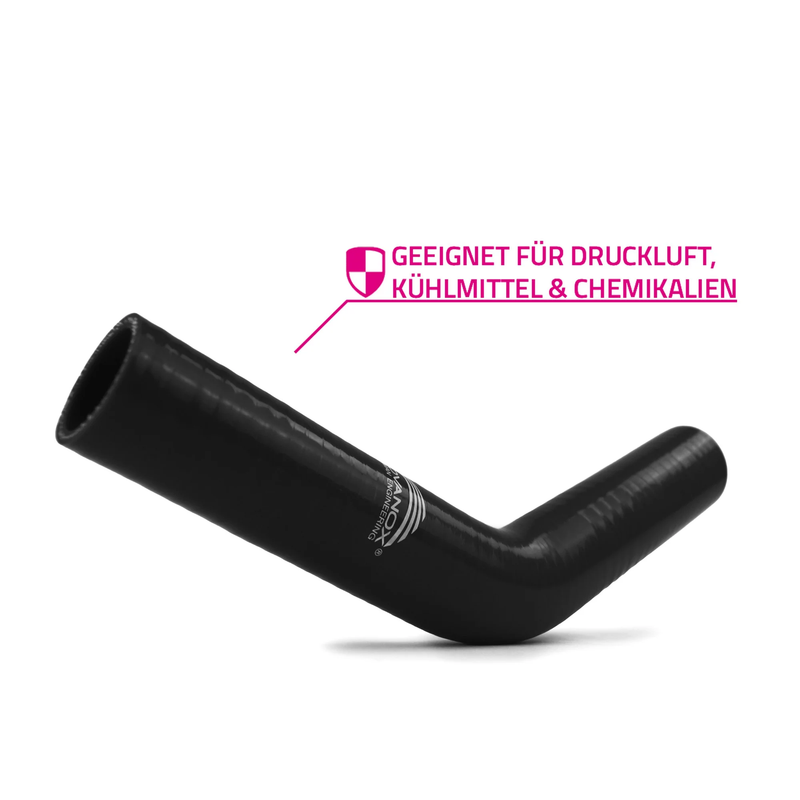

- Resistance (excerpt): UV, water, ozone, oxygen and oil splashes
- Important Restriction: no oil flow (not suitable for oil transport)
The NovaNox® 45° Silicone Elbows with Polyester Reinforcement (VMQ) represent a first-class solution for a wide range of applications. Made from high-quality silicone, they offer not only exceptional flexibility but also a robust structure thanks to the integrated polyester reinforcement.

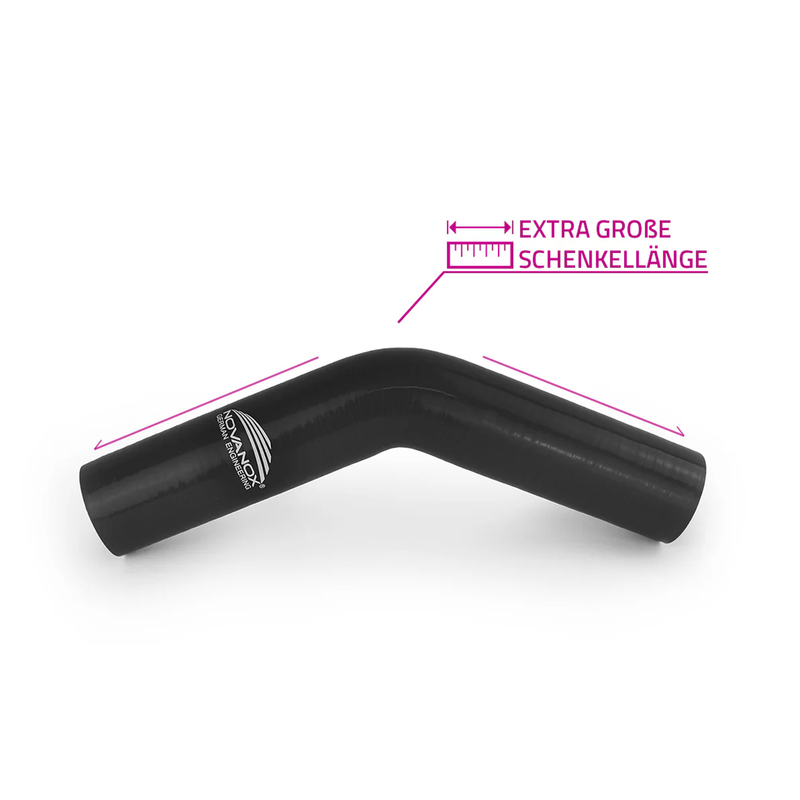

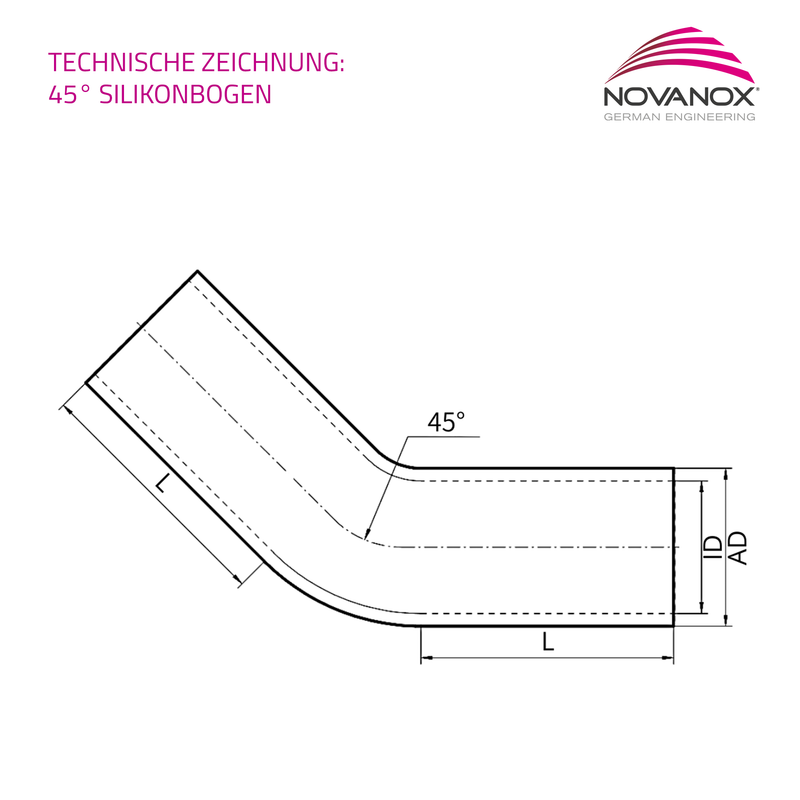

With a leg length of 152 × 152 mm, these silicone elbows enable precise fitting in various pipe systems. Their versatility is reflected in a wide range of inner diameters from 13 mm to 102 mm. The outstanding temperature resistance of -50 °C to +180 °C makes these elbows particularly suitable for demanding environments with extreme temperatures.
- Elastic at high and low temperatures
- Very good weather-resistant properties
- Resistant to ageing and moisture
- Good electrical insulating properties
- Contains no harmful substances – odourless and tasteless
- Resistant to oil splashes (see restriction below)
- Ultraviolet radiation (UV)
- Diluted acids and bases (alkalis)
- Hot and cold water
- Glycol (antifreeze)
- Hot air
- Ozone
- OAT (Organic Acid Technology) antifreeze/coolant fluids based on organic acids
- Oils, lubricants and greases
This silicone elbow is not suitable for oil transport / oil flow. It is resistant to oil splashes, but does not permit oil flow. Please do not use in applications where oil is intended to pass through the hose.
- 1× NovaNox® 45° Silicone Elbow with Polyester Reinforcement in the selected variant (diameter & colour)

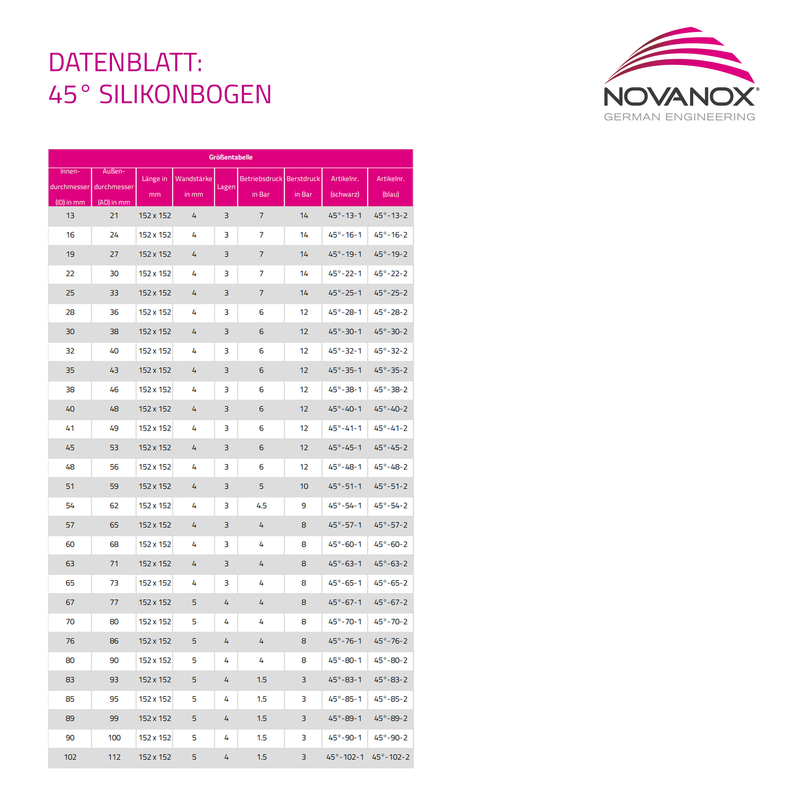

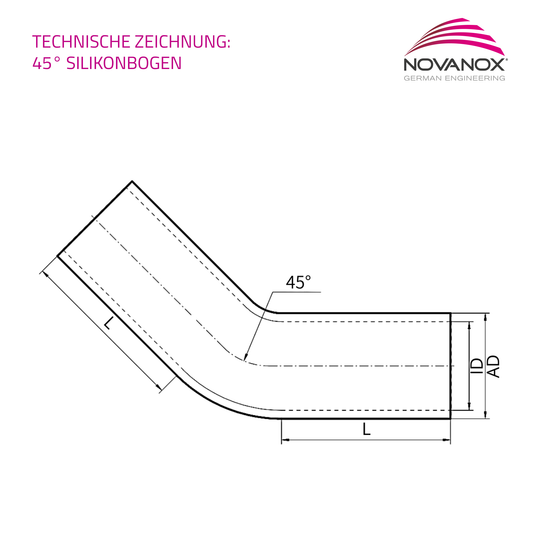

| Size Chart | ||||||||
|---|---|---|---|---|---|---|---|---|
| Inner Diameter (ID) in mm | Outer Diameter (OD) in mm | Length in mm | Wall Thickness in mm | Layers | Working Pressure in Bar | Burst Pressure in Bar | Article No. (black) | Article No. (blue) |
| 13 | 21 | 152 x 152 | 4 | 3 | 7 | 14 | 45°-13-1 | 45°-13-2 |
| 16 | 24 | 152 x 152 | 4 | 3 | 7 | 14 | 45°-16-1 | 45°-16-2 |
| 19 | 27 | 152 x 152 | 4 | 3 | 7 | 14 | 45°-19-1 | 45°-19-2 |
| 22 | 30 | 152 x 152 | 4 | 3 | 7 | 14 | 45°-22-1 | 45°-22-2 |
| 25 | 33 | 152 x 152 | 4 | 3 | 7 | 14 | 45°-25-1 | 45°-25-2 |
| 28 | 36 | 152 x 152 | 4 | 3 | 6 | 12 | 45°-28-1 | 45°-28-2 |
| 30 | 38 | 152 x 152 | 4 | 3 | 6 | 12 | 45°-30-1 | 45°-30-2 |
| 32 | 40 | 152 x 152 | 4 | 3 | 6 | 12 | 45°-32-1 | 45°-32-2 |
| 35 | 43 | 152 x 152 | 4 | 3 | 6 | 12 | 45°-35-1 | 45°-35-2 |
| 38 | 46 | 152 x 152 | 4 | 3 | 6 | 12 | 45°-38-1 | 45°-38-2 |
| 40 | 48 | 152 x 152 | 4 | 3 | 6 | 12 | 45°-40-1 | 45°-40-2 |
| 41 | 49 | 152 x 152 | 4 | 3 | 6 | 12 | 45°-41-1 | 45°-41-2 |
| 45 | 53 | 152 x 152 | 4 | 3 | 6 | 12 | 45°-45-1 | 45°-45-2 |
| 48 | 56 | 152 x 152 | 4 | 3 | 6 | 12 | 45°-48-1 | 45°-48-2 |
| 51 | 59 | 152 x 152 | 4 | 3 | 5 | 10 | 45°-51-1 | 45°-51-2 |
| 54 | 62 | 152 x 152 | 4 | 3 | 4.5 | 9 | 45°-54-1 | 45°-54-2 |
| 57 | 65 | 152 x 152 | 4 | 3 | 4 | 8 | 45°-57-1 | 45°-57-2 |
| 60 | 68 | 152 x 152 | 4 | 3 | 4 | 8 | 45°-60-1 | 45°-60-2 |
| 63 | 71 | 152 x 152 | 4 | 3 | 4 | 8 | 45°-63-1 | 45°-63-2 |
| 65 | 73 | 152 x 152 | 4 | 3 | 4 | 8 | 45°-65-1 | 45°-65-2 |
| 67 | 77 | 152 x 152 | 5 | 4 | 4 | 8 | 45°-67-1 | 45°-67-2 |
| 70 | 80 | 152 x 152 | 5 | 4 | 4 | 8 | 45°-70-1 | 45°-70-2 |
| 76 | 86 | 152 x 152 | 5 | 4 | 4 | 8 | 45°-76-1 | 45°-76-2 |
| 80 | 90 | 152 x 152 | 5 | 4 | 4 | 8 | 45°-80-1 | 45°-80-2 |
| 83 | 93 | 152 x 152 | 5 | 4 | 1.5 | 3 | 45°-83-1 | 45°-83-2 |
| 85 | 95 | 152 x 152 | 5 | 4 | 1.5 | 3 | 45°-85-1 | 45°-85-2 |
| 89 | 99 | 152 x 152 | 5 | 4 | 1.5 | 3 | 45°-89-1 | 45°-89-2 |
| 90 | 100 | 152 x 152 | 5 | 4 | 1.5 | 3 | 45°-90-1 | 45°-90-2 |
| 102 | 112 | 152 x 152 | 5 | 4 | 1.5 | 3 | 45°-102-1 | 45°-102-2 |
