- Product: NORMAFIX® BS Fixing Clamp
- Type: BSL Type 510 according to DIN 72571 – Light Series for 2 lines
- Material: W1 – thick-film passivated
- Bandwidths: 10 mm and 12 mm
- Material thicknesses: 1 mm and 1.5 mm
- Diameter ranges: ø 4 mm to ø 15 mm (8 variants)
- Order code: BSL 2 x ø DIN 72571
- Application: Quick and secure mounting of two pipes, cables, or cable protection conduits to building structures
Item Description ▼

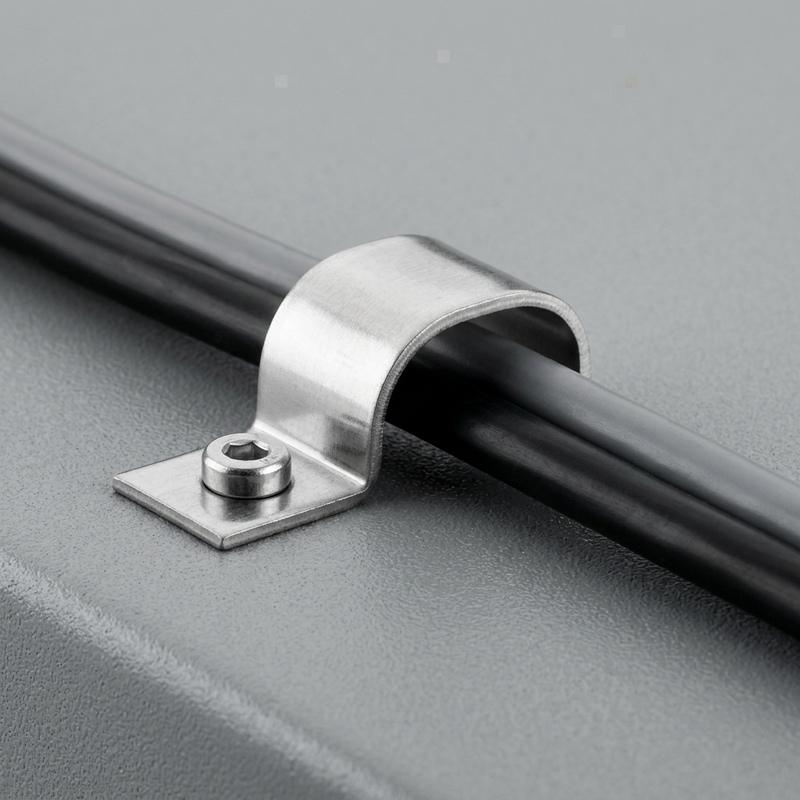

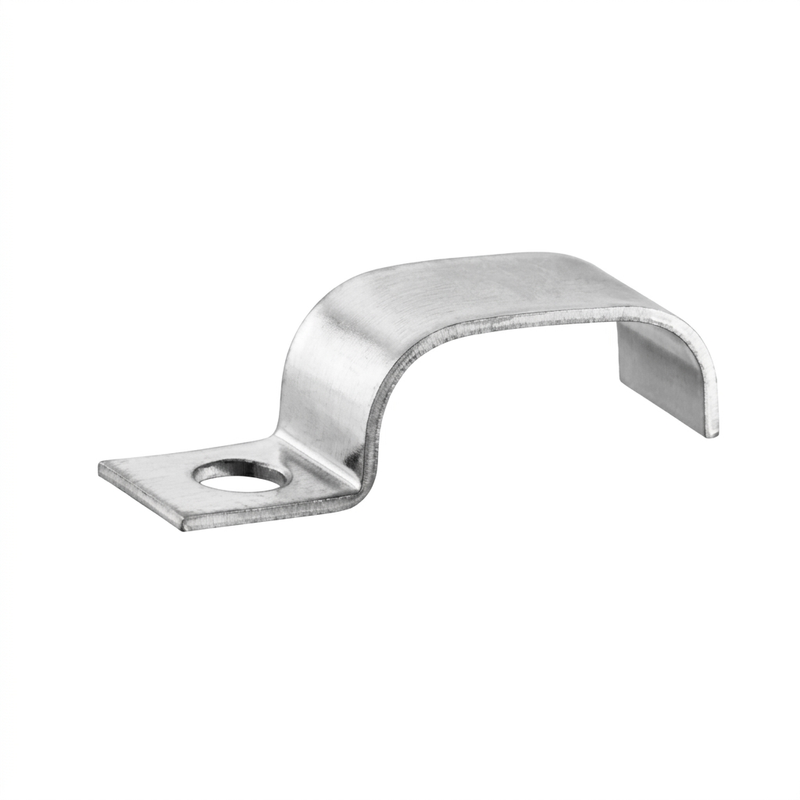

The NORMAFIX® BS Fixing Clamp is the reliable solution for quick and easy mounting of two pipes, cables, or cable protection conduits to building structures. As a light series fixing clamp (BSL) according to DIN 72571, it impresses with its stable band design and precise fit for simple and secure retention of the parts to be fixed.
Thanks to its robust construction and high-quality workmanship from thick-film passivated W1 material, the fixing clamp is ideally suited for all industrial sectors where cost-effective and secure mounting is required. The clamp is manufactured in accordance with DIN 72571 and ensures reliable hold even under demanding conditions.
- Stable band design – for precise fit and secure hold
- Simple and secure retention of two lines simultaneously
- Standard-compliant design according to DIN 72571 for standardized applications
- Thick-film passivated – enhanced corrosion protection
- Light series (BSL) – compact and weight-optimized design
- Space-saving dual mounting – fix two lines with one clamp
- Cost-effective solution for industrial fastening tasks
- Easy mounting to building structures with standard tools
- Mounting of two pipes, cables, or cable protection conduits to building structures
- Vehicle construction and commercial vehicle technology
- Mechanical engineering and industrial plants
- Wherever cost-effective and secure dual mounting is required
- NORMAFIX® BS Fixing Clamp BSL Type 510 according to DIN 72571 for 2 lines in the selected variant (diameter)
Technical Data ▼
| NORMAFIX® BS – BSL Type 510 according to DIN 72571 for 2 lines | |||||
|---|---|---|---|---|---|
| Diameter ø (mm) | l1 (mm) | l2 (mm) | Bandwidth b (mm) | Bore d (mm) | Material thickness s (mm) |
| 4 | 22.5 | 11 | 10 | 4.8 | 1 |
| 5 | 24 | 11.5 | 10 | 4.8 | 1 |
| 6 | 26.5 | 13 | 10 | 4.8 | 1 |
| 7 | 28 | 13.5 | 10 | 4.8 | 1 |
| 8 | 30.5 | 15 | 10 | 4.8 | 1 |
| 10 | 33.5 | 16 | 10 | 4.8 | 1 |
| 12 | 43 | 22 | 12 | 5.8 | 1.5 |
| 15 | 49 | 28 | 12 | 5.8 | 1.5 |
