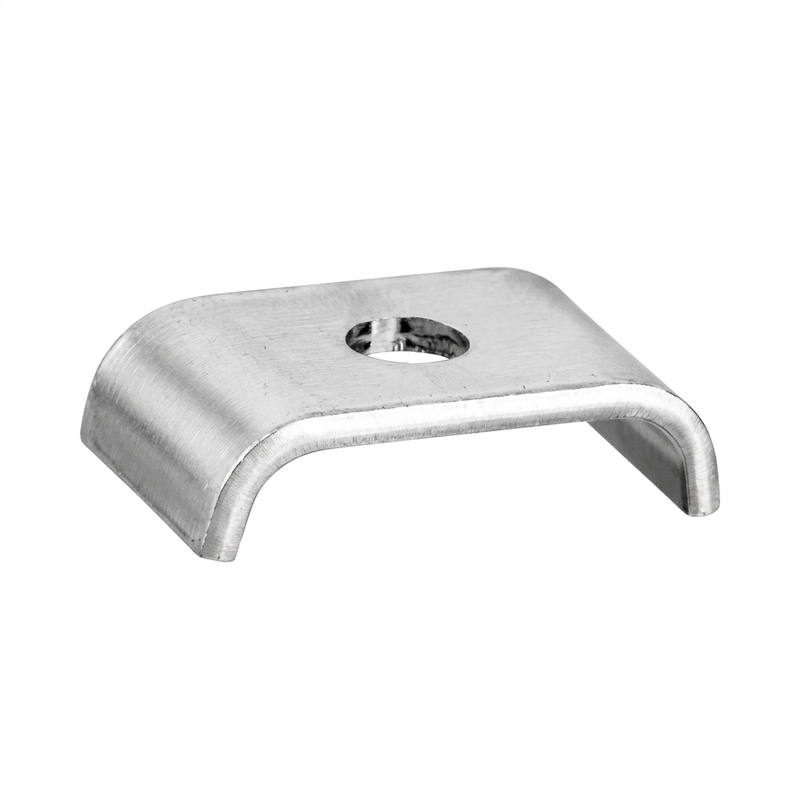

- Product: NORMAFIX® BS Fixing Clamp
- Type: BSS Type 532 – Heavy-duty series for 2 lines
- Material: W1 – thick-film passivated
- Band width: 25 mm
- Material thickness: 3 mm
- Diameter ranges: ø 10 mm to ø 26 mm (9 variants)
- Order code: BSS 2 x ø x 25 x 3

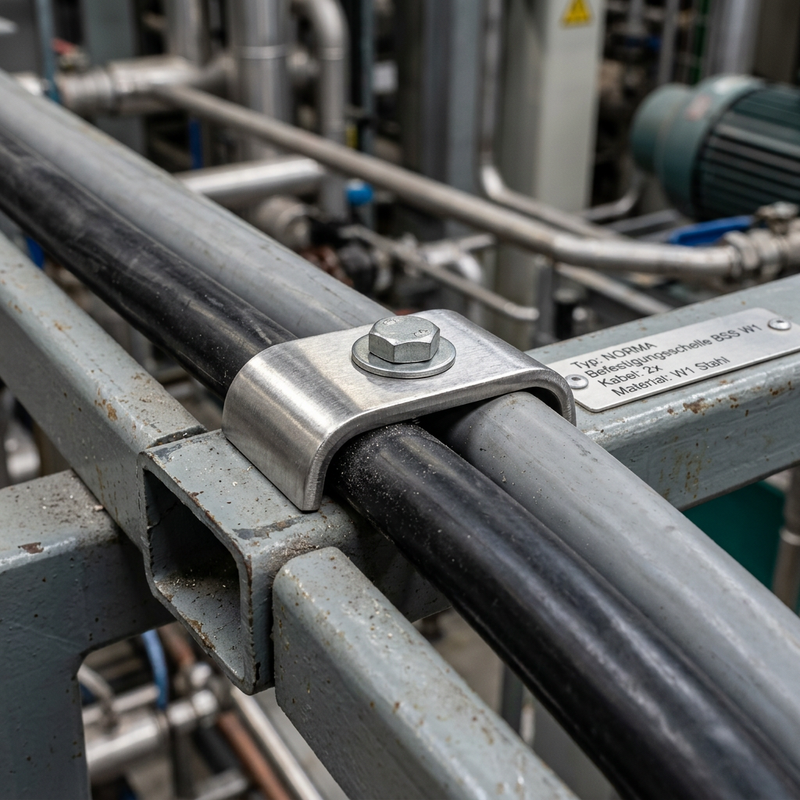

- Application: Fast and secure mounting of two pipes, cables or cable protection conduits to building structures
Product Description ▼
The NORMAFIX® BS Fixing Clamp is the reliable solution for quick and easy mounting of pipes, cables, and cable protection conduits to building structures. As a heavy-duty fixing clamp (BSS) Type 532, it allows the simultaneous fastening of two lines and impresses with its stable band design and precise fit.
Thanks to its robust construction and high-quality processing from thick-film passivated W1-material, the fixing clamp is ideal for all industrial sectors where cost-effective and secure mounting is required. The double design saves installation time and mounting points.
- Stable band design – for a precise fit and secure hold
- Simultaneous fastening of 2 lines – saves installation time and mounting points
- Heavy-duty series (BSS) – particularly robust and resilient
- Thick-film passivated – enhanced corrosion protection
- Band width 25 mm, material thickness 3 mm – for high mechanical requirements
- Wide diameter spectrum – ø 10 mm to ø 26 mm (9 variants)
- Cost-effective solution for industrial fastening tasks
- Easy mounting to building structures with standard tools
- Simultaneous fastening of two pipes, cables or cable protection conduits to building structures
- Vehicle manufacturing and commercial vehicle technology
- Mechanical engineering and industrial plants
- Wherever cost-effective and secure mounting of multiple lines is required
- NORMAFIX® BS Fixing Clamp BSS Type 532 for 2 lines in the selected variant (diameter)
Technical Data ▼
| NORMAFIX® BS – BSS Type 532 for 2 lines | ||||
|---|---|---|---|---|
| Diameter ø (mm) | Axis distance a (mm) | Band width b (mm) | Drill hole d (mm) | Material thickness s (mm) |
| 10 | 30 | 25 | 9 | 3 |
| 12 | 34 | 25 | 9 | 3 |
| 13 | 36 | 25 | 9 | 3 |
| 15 | 40 | 25 | 9 | 3 |
| 18 | 46 | 25 | 9 | 3 |
| 20 | 50 | 25 | 9 | 3 |
| 22 | 54 | 25 | 9 | 3 |
| 23 | 56 | 25 | 9 | 3 |
| 26 | 62 | 25 | 9 | 3 |
