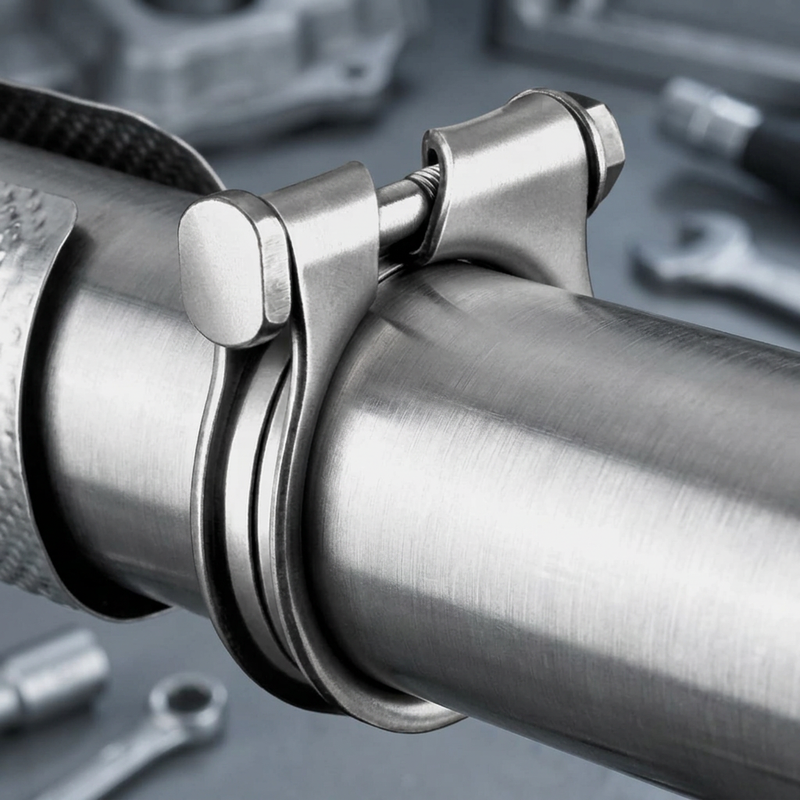

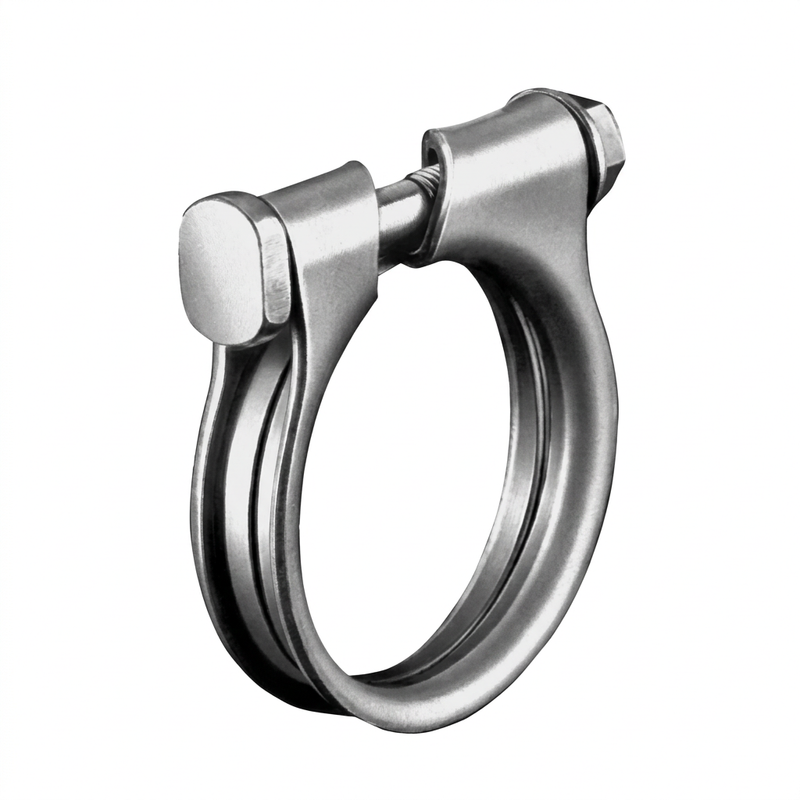

- Product: NORMACONNECT® ARS Exhaust Pipe Clamp
- Material: W1 – corrosion-resistant steel (chromium VI free)
- Clamping ranges: 24–27 mm to 106–114 mm (18 variants)
- Screw types: M8 (hammer-head screw), M10 & M12 (hex head screw)
- Corrosion resistance: min. 144 hours in salt spray test (W1)
- Recommended tightening torque: 8–10 Nm to 35–40 Nm (depending on variant)
- Clamp band: made from one piece – uniform contact pressure
- Application: Connection of exhaust pipes and mufflers in the automotive industry
Product Description ▼
The NORMACONNECT® ARS Exhaust Pipe Clamp is the ideal solution for the secure and reliable connection of nested pipes – even those subject to large temperature fluctuations. It is therefore particularly suitable for connecting exhaust pipes and mufflers in the automotive industry.
Thanks to the single-piece clamp band, the ARS ensures a continuous contact surface with the pipe and uniform contact pressure over the entire pipe circumference. The 1-screw closure allows for simple and quick installation. The W1 material is chromium VI-free and meets the highest quality requirements.
- One-piece clamp band – continuous contact surface with the pipe
- Uniform contact pressure over the entire pipe circumference – good sealing behavior
- Asymmetrical deformation of the pipe excluded
- Rounded band edges – protects pipes and prevents risk of injury
- 1-screw closure – simple and quick installation
- Alternatively M8, M10 & M12 screw – adapted to clamping force requirements
- Chromium VI free – environmentally friendly material
- Corrosion resistance min. 144 hours in salt spray test (W1)
- Connection of nested exhaust pipes
- Connection of exhaust muffler and pipe
- Automotive industry – exhaust systems with large temperature fluctuations
- Wherever secure pipe connections are required under thermal load
- NORMACONNECT® ARS Exhaust Pipe Clamp in the selected variant (clamping range & screw type)
Technical Data ▼
| Technical Data NORMACONNECT® ARS | ||||
|---|---|---|---|---|
| Screw Type | Recommended Tightening Torque | Material | Corrosion Resistance | Special Feature |
| M8 | 8–10 Nm / 10–15 Nm / 15–20 Nm | W1 | Min. 144 h (Salt spray test) | Hammer-head screw |
| M10 | 20–25 Nm | Hex head screw | ||
| M12 | 35–40 Nm | Hex head screw | ||
| Sizes & Clamping Ranges at a Glance | ||||
|---|---|---|---|---|
| Designation | Clamping Range D1–D2 (mm) | Packaging Unit (IK) | S (mm) | B (mm) |
| ARS M8-27 W1 | 24–27 | 100 | 1.5 | 10.4 |
| ARS M8-33 W1 | 30–33 | 100 | 1.5 | 10.4 |
| ARS M8-36 W1 | 33–36 | 100 | 2.0 | 12.8 |
| ARS M8-39.5 W1 | 36.5–39.5 | 100 | 2.0 | 12.0 |
| ARS M8-42 W1 | 39–42 | 100 | 2.0 | 12.8 |
| ARS M8-45 W1 | 42–45 | 100 | 2.5 | 13.6 |
| ARS M8-46 W1 | 43–46 | 100 | 2.5 | 12.8 |
| ARS M8-47 W1 | 44–47 | 100 | 2.5 | 13.6 |
| ARS M8-49 W1 | 45–49 | 100 | 2.5 | 13.2 |
| ARS M8-51 W1 | 48–51 | 100 | 2.5 | 13.2 |
| ARS M8-54 W1 | 51–54 | 100 | 2.5 | 13.2 |
| ARS M8-55 W1 | 52–55 | 100 | 2.5 | 13.6 |
| ARS M8-58 W1 | 55–58 | 100 | 2.5 | 13.2 |
| ARS M8-64 W1 | 61–64 | 100 | 2.5 | 13.2 |
| ARS M8-71 W1 | 68–71 | 100 | 2.5 | 13.2 |
| ARS M10-64 W1 | 60–64 | 100 | 3.0 | 15.0 |
| ARS M10-71 W1 | 67–71.5 | 100 | 3.0 | 15.0 |
| ARS M12-114 W1 | 106–114 | 50 | 3.0 | 19.0 |
