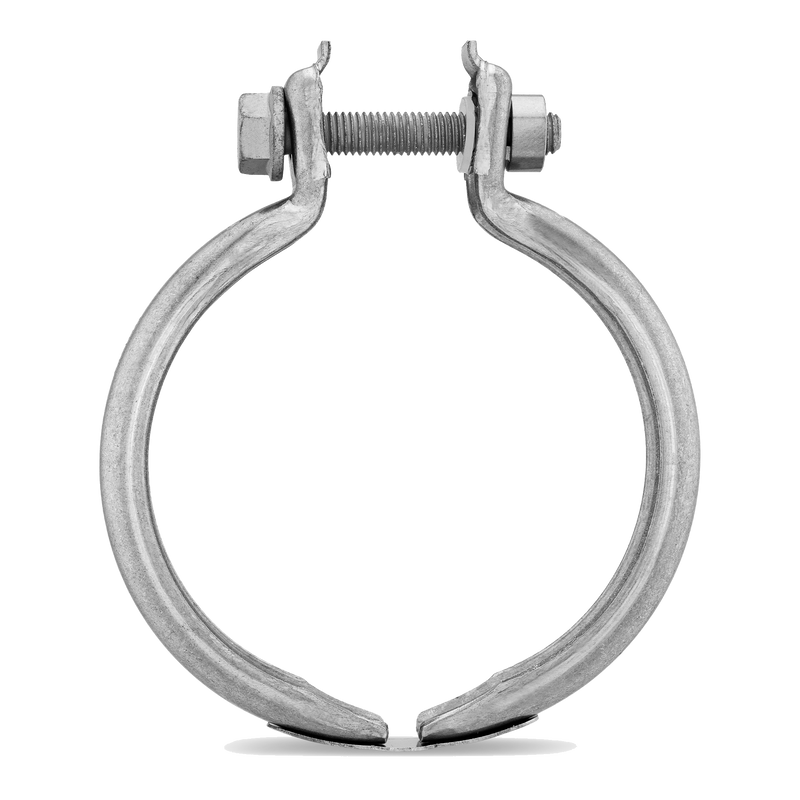

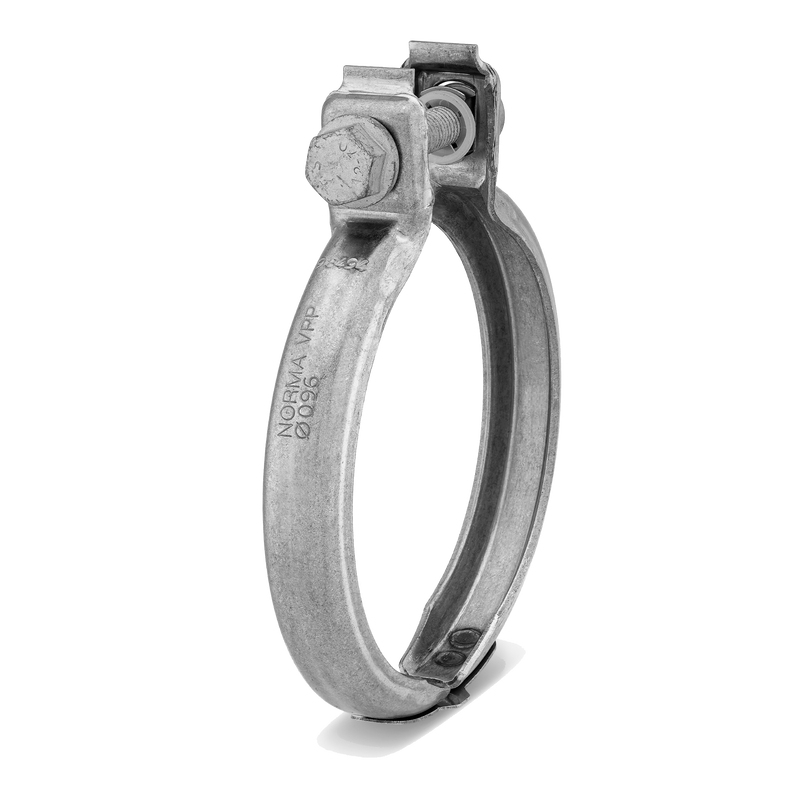

- Product: NORMACONNECT® VPP Bridge Profile Clamp for Exhaust Systems
- Material Group: W5 – high-temperature resistant stainless steel (1.4571)
- Screw: A2-70 | Nut: A2 | Spring: 1.4310 or 1.4828
- Nominal Diameter (Ø DN): 79 mm to 138 mm (11 variants)
- Profile Inner Bandwidth (w1): 8.55 mm
- Temperature Resistance: up to 1,050 °C
- Packaging Quantity: 25 pieces
- Application: Turbocharger and exhaust systems
Product Description ▼
The NORMACONNECT® VPP Bridge profile clamp is the ideal solution for demanding connections in turbocharger and exhaust systems. As a high-performance V-band clamp, it impresses with exceptionally high clamping forces and maximum safety, even under extreme temperature conditions of up to 1,050 °C.
Thanks to its robust construction and high-quality manufacturing from high-temperature resistant W5 stainless steel (1.4571), the VPP Bridge is ideally suited for applications in exhaust systems, turbocharger connections, and other high-temperature areas. Installation is quick and easy thanks to the integrated spring bridge – with minimal space requirements.
- High resistance to extreme temperatures up to 1,050 °C
- Quick and easy installation thanks to spring bridge
- Particularly high clamping force for secure connections
- Minimal space requirement during installation
- No overlap band – reduces temperature difference and clamp costs
- Movable nut ensures movement along the screw axis for reduced tolerance influences during tightening
- Part of a broad product portfolio of the NORMACONNECT® family
- Turbocharger connections
- Exhaust systems
- Air intake and charge air systems
- Cooling systems, fuel & oil systems
- General fastenings in high-temperature environments
- NORMACONNECT® VPP Bridge profile clamp in the selected variant (Ø DN)
Technical Data ▼
| Profile Dimensions NORMACONNECT® VPP Bridge | |||||||
|---|---|---|---|---|---|---|---|
| Article Number | Description | Ø DN (mm) | Packaging Quantity (pcs.) | w1 (mm) | w2 (mm) | h1 (mm) | h2 (mm) |
| 0168 0000 079 | VPP Bridge 079 | 79 | 25 | 8.55 | 17.15 | 5.5 | 6.7 |
| 0168 0000 083 | VPP Bridge 083 | 83 | 25 | 8.55 | 17.15 | 5.5 | 6.7 |
| 0168 0000 086 | VPP Bridge 086 | 86 | 25 | 8.55 | 17.15 | 5.5 | 6.7 |
| 0168 0000 094 | VPP Bridge 094 | 94 | 25 | 8.55 | 17.15 | 5.5 | 6.7 |
| 0168 0000 096 | VPP Bridge 096 | 96 | 25 | 8.55 | 17.15 | 5.5 | 6.7 |
| 0168 0000 098 | VPP Bridge 098 | 98 | 25 | 8.55 | 17.15 | 6.0 | – |
| 0168 0000 101 | VPP Bridge 101 | 101 | 25 | 8.55 | 17.15 | 5.8 | 7.2 |
| 0168 0000 107 | VPP Bridge 107 | 107 | 25 | 8.55 | 17.15 | 5.5 | 6.7 |
| 0168 0000 113 | VPP Bridge 113 | 113 | 25 | 8.55 | 17.15 | 5.5 | 6.7 |
| 0168 0000 120 | VPP Bridge 120 | 120 | 25 | 8.55 | 17.15 | 5.5 | 6.7 |
| 0168 0000 138 | VPP Bridge 138 | 138 | 25 | 8.55 | 17.15 | 5.3 | 6.7 |
| Material Specifications at a Glance | ||
|---|---|---|
| Component | Material | Group |
| Profile | 1.4571 | W5 |
| Screw | A2-70 | – |
| Nut | A2 | – |
| Spring | 1.4310 or 1.4828 | – |
