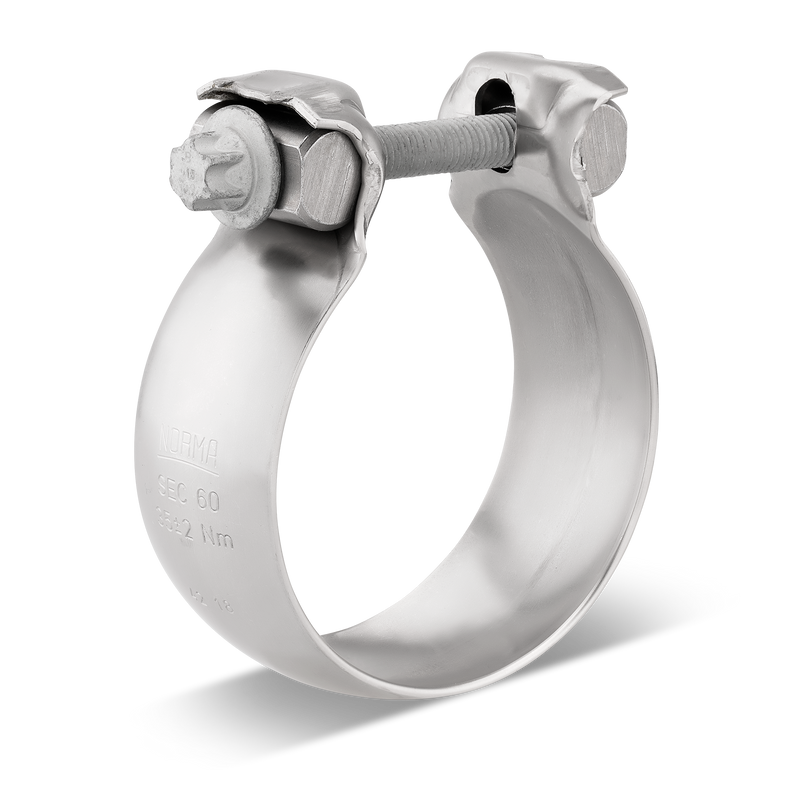

- Product: NORMACONNECT® SEC ±2NM W2 Ball Joint Exhaust Clamp
- Band Material: W2 – 1.4301 (AISI 304) Stainless Steel
- Bolt Material: 1.0718 (AISI 12L13)
- Screw: Grade 10.9 (alloyed tempered steel), Torx with integrated washer
- Tightening Torque: 35 ± 2 Nm
- Clamping Ranges (ØDN): 55 mm, 60 mm, 65 mm, 70 mm, 75 mm
- Temperature Resistance: up to 700 °C
- Application: Connections in the rear and middle sections of exhaust systems for passenger cars and commercial vehicles
Item Description ▼
The NORMACONNECT® SEC ±2NM W2 Ball Joint Exhaust Clamp is the ideal solution for reliable connections in the rear and middle sections of exhaust systems in passenger cars and commercial vehicles. With very low leakage rates and temperature resistance up to 700 °C, it performs even under extreme thermal conditions.
Thanks to the ball joint connection with tulip flange, exhaust pipes can be angled, allowing for flexible assembly. The chromium(VI)-free screw coating prevents seizing and ensures improved clamping force even at high temperatures. The high-quality band made of W2 stainless steel (1.4301 / AISI 304) guarantees long-lasting corrosion resistance.
- Ball joint connection with tulip flange – compensates for angles of up to ± 3°
- Full bolt – reduces tensile forces in the screw and mechanical lock
- Torx screw with integrated washer – for easy installation and removal
- Chromium(VI)-free screw coating – prevents seizing at high temperatures
- Very low leakage rates – for tight and secure exhaust connections
- Resistant to high temperatures – up to 700 °C
- Low weight – for weight-sensitive applications in vehicle construction
- Mufflers can be swiveled during assembly – simplifies installation
- Connections in the rear and middle sections of exhaust pipe systems
- Passenger cars and commercial vehicles
- Applications with high temperatures up to 700 °C
- Wherever low leakage rates and flexible pipe connections are required
- NORMACONNECT® SEC ±2NM W2 Ball Joint Exhaust Clamp in the selected variant (pipe diameter ØDN)
Technical Data ▼
| Technical Data NORMACONNECT® SEC ±2NM W2 | |||
|---|---|---|---|
| Property | Band (W2) | Bolt | Screw |
| Material | 1.4301 (AISI 304) | 1.0718 (AISI 12L13) | Grade 10.9 (alloyed tempered steel) |
| Tightening Torque | 35 ± 2 Nm | ||
| Max. Temperature | 700 °C | ||
| Angularity | ± 3° | ||
| Screw Type | Torx with integrated washer, chromium(VI)-free coated | ||
| Clamping Ranges Overview | ||
|---|---|---|
| Article Number | Description | ØDN* (mm) |
| 0595 6312 055 – 1 | SEC 55 | 55 |
| 0595 5312 060 – 1 | SEC 60 | 60 |
| 0595 5312 065 – 1 | SEC 65 | 65 |
| 0595 6312 070 – 1 | SEC 70 | 70 |
| 0595 6342 075 | SEC 75 | 75 |
