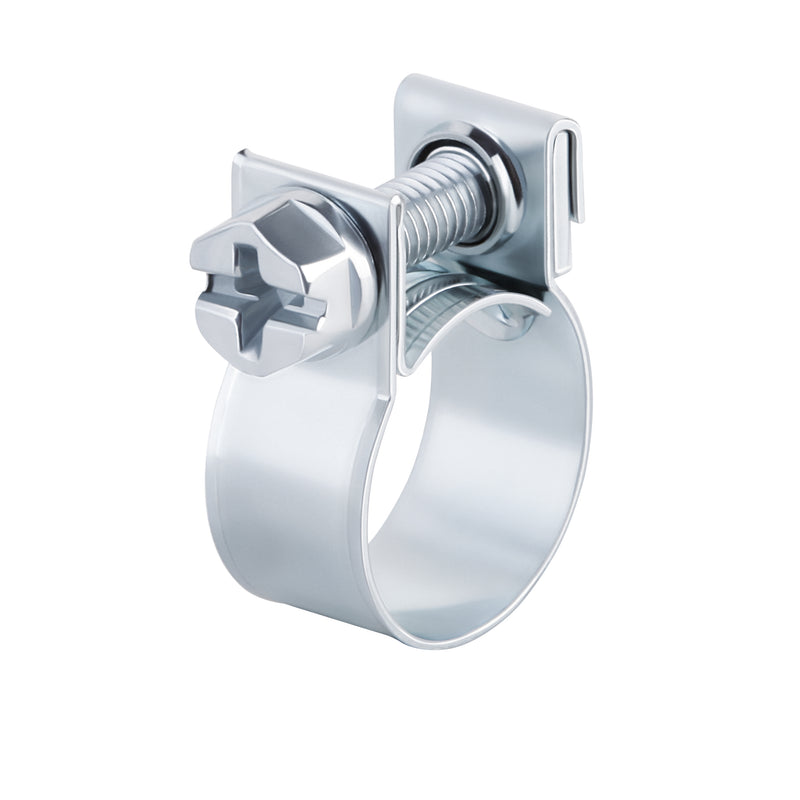

- Product: ABA Mini (SM 9) W1 & W4 band clamp
- Material W1: Steel, electro-galvanized (band, screw, nut)
- Material W4: Stainless steel 1.4301 – Band and nut plain, screw zinc-coated
- Clamping ranges: 6.5–7.5 mm to 16–21 mm (nominal Ø 7 to 21 mm)
- Band width: 9 mm
- Recommended tightening torque W1: max. 1.2 Nm
- Recommended tightening torque W4: max. 120 Ncm
- Application: Particularly suitable for small diameters and thin-walled hoses
Product Description ▼
The ABA Mini band clamp (SM 9) W1 / W4 is the ideal solution for secure fastening of thin-walled hoses and small diameters. As a compact hose clamp, it impresses with excellent clamping force – significantly better than screwless clamps – and gentle handling of the hose material.
Thanks to the upturned band edges, the hose is optimally protected. The underlying band tongue is provided with a reinforcing embossment, and the nut is firmly seated in a lug, even when the screw is completely unscrewed. The hexagon screw head with combination slot allows the use of ABA's flexible socket wrenches. All parts are Cr6-free according to the EU End-of-Life Vehicles Directive and RoHS.
- Upturned band edges – reliably protect the hose
- Reinforcing embossment on the underlying band tongue for increased stability
- Nut securely fixed in lug – remains fixed even when the screw is completely unscrewed
- Hex head SW 7 with combination slot and collar – compatible with ABA's flexible socket wrenches
- Excellent clamping force – significantly outperforms screwless clamps
- Particularly suitable for small diameters and thin-walled hoses
- Cr6-free according to 2000/53/EC (EU End-of-Life Vehicles Directive) and 2002/95/EC (RoHS)
- Two material versions: W1 (galvanized steel) and W4 (stainless steel 1.4301)

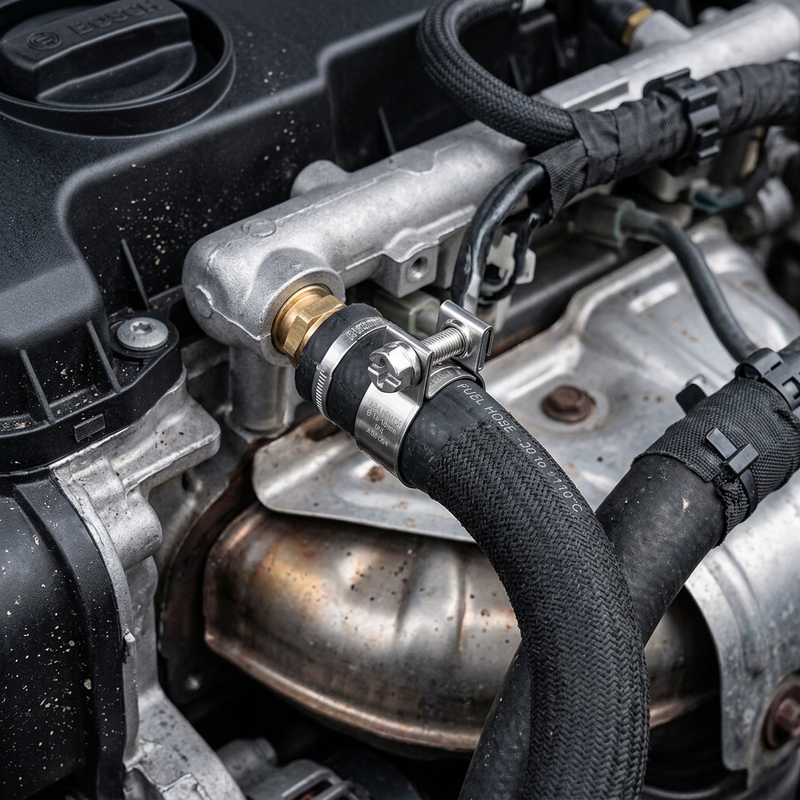

- Fastening thin-walled hoses with small outer diameters
- Vehicle construction, mechanical engineering and industrial plants
- Wherever space-saving and hose-friendly clamps are required
- Applications with nominal Ø 7 mm to 21 mm
- ABA Mini band clamp (SM 9) in the selected variant (nominal Ø & material version W1 or W4)
Technical Data ▼
| Dimensions ABA Mini (SM 9) – Table 1 | ||||
|---|---|---|---|---|
| Nominal Ø d¹ (mm) | Clamping range (mm) | Band width b ± 0.5 (mm) | h max. (mm) | l1 (mm) |
| 7 | 6.5 – 7.5 | 9 | 11 | 13 |
| 8 | 7 – 8.5 | 13 | ||
| 9 | 8 – 9.5 | 13 | ||
| 10 | 9 – 10.5 | 13 | ||
| 11 | 9.5 – 11.5 | 16 | ||
| 12 | 10.5 – 12.5 | 16 | ||
| 13 | 11.5 – 13.5 | 16 | ||
| 14 | 12.5 – 14.5 | 16 | ||
| 15 | 13.5 – 15.5 | 16 | ||
| 16 to 21¹ | ± 1 | 9 | 11 | 20 |
| Screws & Torques | ||
|---|---|---|
| l1 (mm) | Screw | Head type C |
| 13 | M4 x 13 | Hex head SW 7 with combination slot and collar |
| 16 | M4 x 16 | |
| 20 | M4 x 20 | |
| Material – Table 2 | |||
|---|---|---|---|
| Abbreviation | Screw | Nut | Band |
| W1 | Strength class 8.8, electro-galvanized according to DIN 50961 | DC01 + C290 or DC03 + C290, electro-galvanized according to DIN 50961 | Steel, minimum tensile strength 400 N/mm², electro-galvanized or hot-dip coated Z100 |
| W4 | 1.4301 (or comparable), 5 µm electro-galvanized | 1.4301 (or comparable) | 1.4301 (or comparable), plain (without coating) |
| Torque values at a glance | |
|---|---|
| Version | Value |
| Recommended tightening torque W1 | max. 1.2 Nm |
| Static test torque W1 | max. 1.5 Nm |
| Recommended tightening torque W4 | max. 120 Ncm |
| Static test torque W4 | max. 150 Ncm |
| Band thickness s ± 0.1 (mm) | 0.5 (W1) / 0.4 (W4) |
