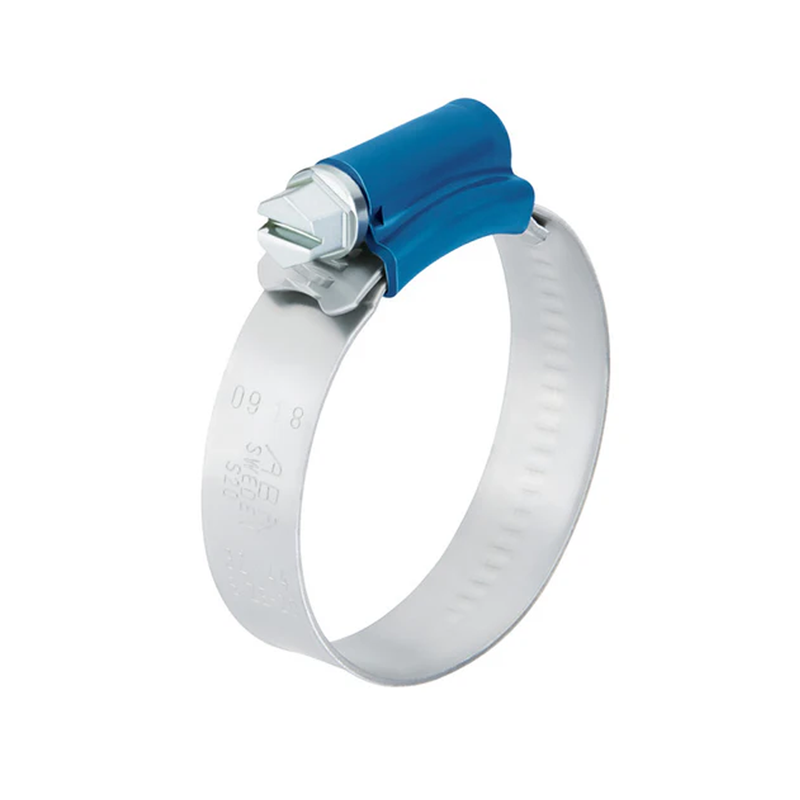

- Product: ABA Safe™ SMST 12 mm worm drive hose clamp
- Materials: W1 (Aluzinc) · W4 (Stainless Steel A2) · W5 (Stainless Steel A4) · S60 (Galvanized Steel)
- Clamping ranges: 15–24 mm to 290–310 mm (51 variants)
- Bandwidth: 12 mm
- Recommended tightening torque: 4–5 Nm (small) / 5–6 Nm (medium & large)
- Break torque: from 6 Nm (depending on size)
- Application: Hose fastening on soft hoses & plastic pipes
- Standard: SS-ISO 2768-1, drawing no. 30033-00
Product Description ▼
The ABA Safe™ SMST 12 mm worm drive hose clamp is the ideal solution for gentle and secure fastening of soft hoses and plastic pipes. The ABA Safe™ clamp considers the flexibility of the hose and reliably protects sensitive surfaces from damage.
Due to the increased pressure distribution at the profile beads, the clamp also securely seals the ends of plastic pipes with low settling. Depending on the application environment, the clamp is available in four material variants – from cost-effective Aluzinc steel to high-alloy stainless steel A4 for aggressive media and outdoor applications.
- Hose-friendly design – protects soft hoses from damage
- Increased pressure at the profile beads – secure sealing even with plastic pipes
- Low settling – reliable connections even with plastic ends
- 4 material variants – W1, W4, W5, and S60 for every application area
- 12 mm bandwidth – even force distribution on the hose
- Wide size range – 20 variants from 15 mm to 310 mm delivery diameter
- Easy installation – with a standard screwdriver or wrench
- Proven ABA quality – manufactured according to SS-ISO 2768-1
- Fastening soft rubber hoses in vehicle and mechanical engineering
- Sealing plastic pipes with low settling
- Sanitary, heating, and air conditioning technology
- Chemical plants and marine environments (W5)
- Food and pharmaceutical industry (W4/W5)
- Wherever hose-friendly connections are required
- ABA Safe™ SMST 12 mm worm drive hose clamp in the selected variant (material & clamping range)
Technical Data ▼
| Torque Values ABA Safe™ SMST 12 mm | ||||
|---|---|---|---|---|
| Size Range | Break Torque (min.) | Recommended Tightening Torque | Bandwidth (mm) | Materials |
| 15–38 mm (small) | 6 Nm | 4–5 Nm | 12 | W1 · W4 · W5 · S60 |
| 32–65 mm (medium) | 7 Nm | 5–6 Nm | 12 | |
| 58–310 mm (large) | 8 Nm | 5–6 Nm | 12 | |
| Clamping Ranges & Dimensions at a Glance | ||||
|---|---|---|---|---|
| Subnr. | Size (mm) | Delivery Diameter Del. ø (mm) | Min. ø (mm) | ø D Max (mm) |
| -024 | 15–24 | 25 | 15 | 2 |
| -028 | 19–28 | 29 | 19 | 2 |
| -032 | 22–32 | 33 | 22 | 2 |
| -038 | 26–38 | 39 | 26 | 2 |
| -044 | 32–44 | 45 | 32 | 2 |
| -050 | 38–50 | 51 | 38 | 2 |
| -056 | 44–56 | 57 | 44 | 2 |
| -065 | 50–65 | 66 | 50 | 2 |
| -075 | 58–75 | 76 | 58 | 2 |
| -085 | 68–85 | 86 | 68 | 2 |
| -095 | 77–95 | 96 | 77 | 2 |
| -112 | 87–112 | 113 | 87 | 2,5 |
| -138 | 104–138 | 139 | 106 | 2,5 |
| -165 | 130–165 | 166 | 132 | 2,5 |
| -180 | 150–180 | 181 | 150 | 2,5 |
| -205 | 175–205 | 206 | 175 | 2,5 |
| -231 | 200–231 | 232 | 200 | 2,5 |
| -256 | 226–256 | 257 | 226 | 2,5 |
| -282 | 251–282 | 283 | 251 | 2,5 |
| -310 | 290–310 | 311 | 290 | 2,5 |
