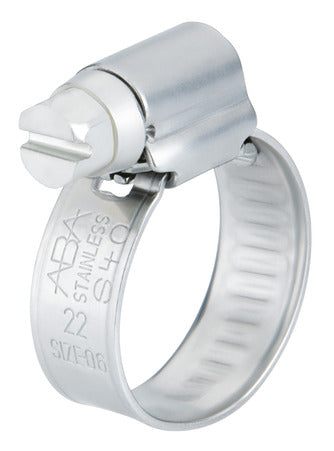

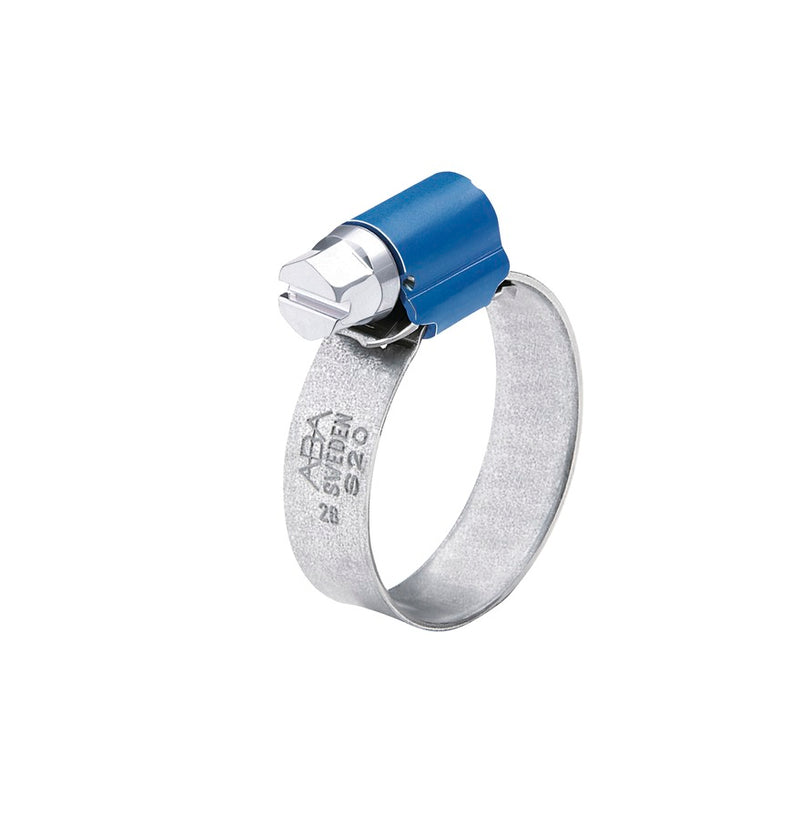

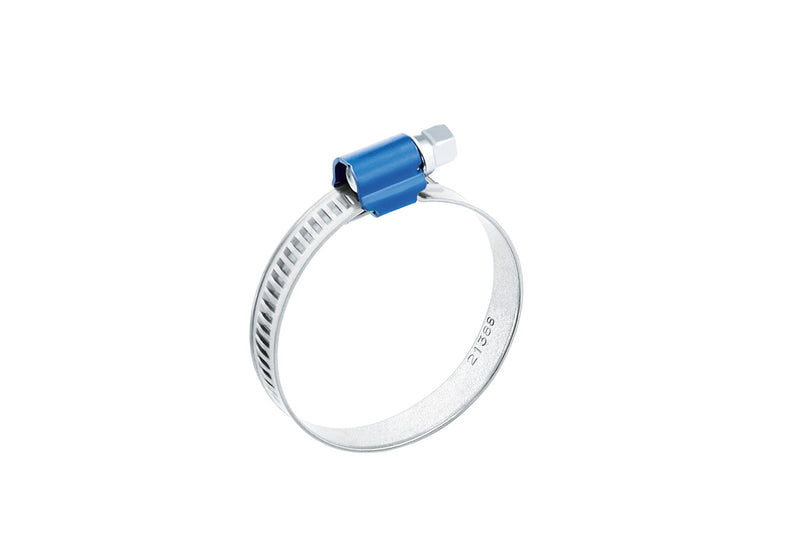

- Product: ABA Nova C7 W1, W4, W5 Worm Drive Hose Clamp
- Material Variants: W1 (galvanized steel / Aluzinc), W4 (stainless steel SS 2333/AISI 304), W5 (stainless steel SS 2343/AISI 316)
- Clamping Ranges: 8–12 mm to 68–85 mm (depending on variant)
- Recommended Tightening Torque: 2.5–3.5 Nm (small sizes) to 4–4.5 Nm (large sizes)
- Standards: Meets SS 2298, exceeds DIN 3017
- Housing: New compact housing – one-piece pressed, mechanically locked, no weld spots
- Traceability: Code on each clamp
- Application: Hose connections in industry, vehicle manufacturing, and domestic installations
Item Description ▼
The ABA Nova C7 worm drive hose clamp is the new generation of proven ABA clamps, offering reliable, tight connections for maximum safety. The newly designed compact housing ensures even clamping force and secure band guiding. The short housing saddle provides optimal contact pressure on the hose.
ABA Nova clamps have been extensively tested and exceed the requirements of standard DIN 3017. They also comply with standard SS 2298 and combine low idle tightening torque with high clamping force. Available in material versions W1 (standard with Aluzinc band), W4 (stainless steel) and W5 (acid-resistant stainless steel).
- New compact housing – stronger and more evenly distributed clamping force
- Special screw design – lower idle tightening torque
- Mechanically locked – no weld spots, prevents contact corrosion
- Housing base lock – secures against band slipping due to impacts
- New band marking – indicates material & size of the clamp
- Traceability code on each clamp
- Hose-friendly – rounded edges and housing bottom reduce risk of leakage
- Clamping force reserve – high breaking strength combined with high clamping force
- Industry and mechanical engineering
- Vehicle manufacturing and commercial vehicles
- Domestic installations and plumbing
- Wherever reliable and tight hose connections are required
- ABA Nova C7 worm drive hose clamp in the selected variant (material & clamping range)
Technical Data ▼
| Nova W1 S20 (SS 2298) – Recommended Tightening Torque | |
|---|---|
| Clamping Range (mm) | Recommended Tightening Torque (Nm) |
| 8–14 | 2.5–3.5 |
| 11–17 | 2.5–3.5 |
| 13–20 | 3–4 |
| 15–24 | 3–4 |
| 19–28 | 3–4 |
| 22–32 | 3–4 |
| 26–38 | 4–4.5 |
| 32–44* | 4–4.5 |
| 38–50* | 4–4.5 |
| 44–56* | 4–4.5 |
| 50–65* | 4–4.5 |
| 58–75* | 4–4.5 |
| 68–85* | 4–4.5 |
| Nova W1 S20 – Recommended Tightening Torque (Aluzinc Band) | |
|---|---|
| Clamping Range (mm) | Recommended Tightening Torque (Nm) |
| 8–12 | 2.5–3.5 |
| 10–16 | 2.5–3.5 |
| 12–22 | 3–4 |
| 16–25 | 3–4 |
| 16–27 | 3–4 |
| 20–32 | 3–4 |
| 25–40 | 4–4.5 |
| 30–45* | 4–4.5 |
| 32–50* | 4–4.5 |
| 40–60* | 4–4.5 |
| 50–70* | 4–4.5 |
| 60–80* | 4–4.5 |
| Nova W5 S50 (SS 2298) – Recommended Tightening Torque | |
|---|---|
| Clamping Range (mm) | Recommended Tightening Torque (Nm) |
| 8–14 | 2.5–3.5 |
| 11–17 | 2.5–3.5 |
| 13–20 | 2.5–3.5 |
| Nova W4 S40 (SS 2298) – Recommended Tightening Torque | |
|---|---|
| Clamping Range (mm) | Recommended Tightening Torque (Nm) |
| 8–14 | 2.5–3.5 |
| 11–17 | 2.5–3.5 |
| 13–20 | 3–4 |
| 15–24 | 3–4 |
| 19–28 | 3–4 |
| 22–32 | 3–4 |
| 26–38 | 4–4.5 |
