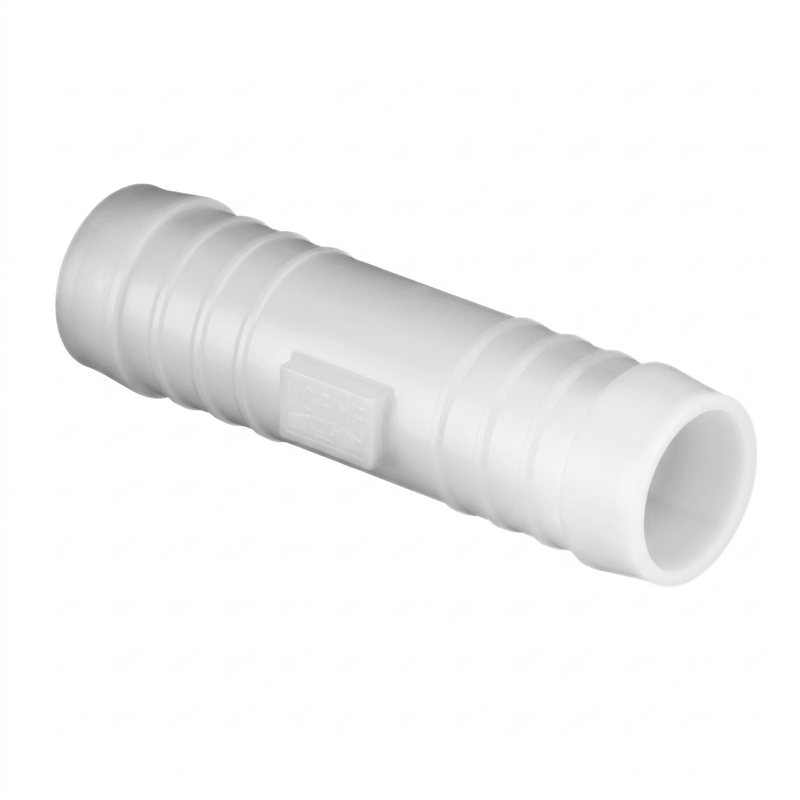

- Product: NORMAPLAST® SV GS Straight Hose Connector
- Material: Acetal copolymer (POM) – natural color
- Sizes (D1): 3 mm to 25 mm (12 variants)
- Overall lengths (L1): 25 mm to 95 mm (depending on size)
- Design: Straight with two connection nozzles
- Ribbing: Secure hose fit due to ribbed nozzles
- Application: Fast and easy straight connection of hoses in industry and automotive engineering
- Packaging unit: 100 pieces
Item Description ▼
The NORMAPLAST® SV GS Straight Hose Connector is the ideal solution for fast and reliable straight hose connections. As a proven plastic hose and pipe connection part, it connects media-carrying lines securely, reliably, and affordably.
Thanks to its robust construction made of high-quality acetal copolymer (POM), the straight hose connector is ideally suited for use in automotive engineering and almost all industrial sectors. The ribbed connectors ensure a secure hose fit – simply push the hoses on and you're done.
- High strength – reliable connection even under load
- Toughness and impact resistance – robust in daily use
- Low weight – lightweight plastic for weight-optimized applications
- Damping capability – reduces vibrations in the line
- Abrasion resistance – durable even with mechanical stress
- Ribbed connectors for secure hose fit without complex assembly
- Straight design – ideal for space-saving, direct hose connections
- Wide range of sizes – 12 variants from 3 mm to 25 mm
- Automotive and vehicle technology
- Mechanical engineering and industrial plants
- Straight connection of hoses for fluid and air lines
- Wherever fast and secure straight hose connections are required
- NORMAPLAST® SV GS Straight Hose Connector in the selected size (D1)
Technical Data ▼
| Sizes at a glance NORMAPLAST® SV GS – Straight Hose Connectors | ||||
|---|---|---|---|---|
| Designation | D1 (mm) | D2 (mm) | L1~ (mm) | PU (pieces) |
| GS 3 | 3 | 2.5 | 25 | 100 |
| GS 4 | 4 | 2.7 | 35 | 100 |
| GS 5 | 5 | 3 | 45 | 100 |
| GS 6 | 6 | 4 | 49 | 100 |
| GS 8 | 8 | 5.6 | 56 | 100 |
| GS 10 | 10 | 7 | 63 | 100 |
| GS 12 | 12 | 8.6 | 66.5 | 100 |
| GS 13 | 13 | 8.6 | 73 | 100 |
| GS 14 | 14 | 10 | 79 | 100 |
| GS 16 | 16 | 12 | 75 | 100 |
| GS 19 | 19 | 15 | 76 | 100 |
| GS 25 | 25 | 21 | 95 | 100 |
