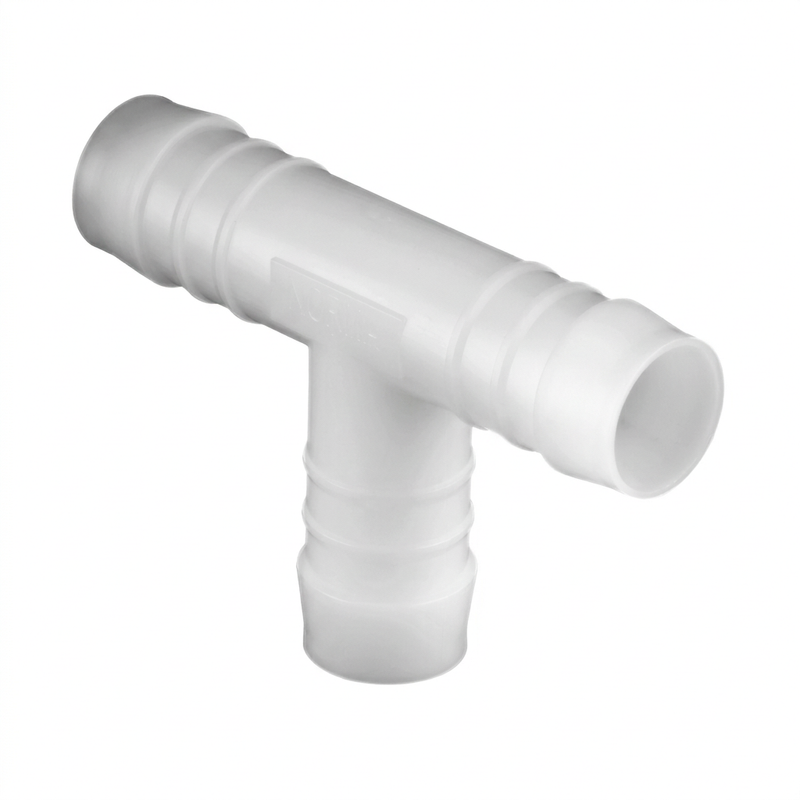

- Product: NORMAPLAST® SV TS T-Hose Connector
- Material: Acetal copolymer (POM) – natural color
- Sizes (D1): 3 mm to 25 mm (14 variants)
- Total lengths (L1): 25 mm to 105 mm (depending on size)
- Design: T-shaped with three connecting nozzles
- Ribbing: Secure hose fit due to ribbed nozzles
- Application: Fast and easy connection of hoses in industry and automotive construction
- Packaging unit: 25 to 100 pieces (depending on size)
Item Description ▼
The NORMAPLAST® SV TS T-Hose Connector is the ideal solution for fast and reliable connection of hoses in a T-shape. As a proven hose and pipe connecting part made of plastic, it connects media-carrying lines safely, reliably, and cost-effectively.
Thanks to its robust construction made of high-quality acetal copolymer (POM), the T-hose connector is perfectly suited for use in automotive construction and in almost all industrial sectors. The ribbed nozzles ensure a secure hose fit – simply slide the hoses on and you're done.
- High strength – reliable connection even under load
- Toughness and impact resistance – robust in daily use
- Low weight – lightweight plastic for weight-optimized applications
- Damping capability – reduces vibrations in the line
- Abrasion resistance – durable even with mechanical stress
- Ribbed nozzles for secure hose fit without elaborate assembly
- Fast assembly – slide on the hose, done
- Wide range of sizes – 14 variants from 3 mm to 25 mm
- Automotive construction and vehicle technology
- Mechanical engineering and industrial plants

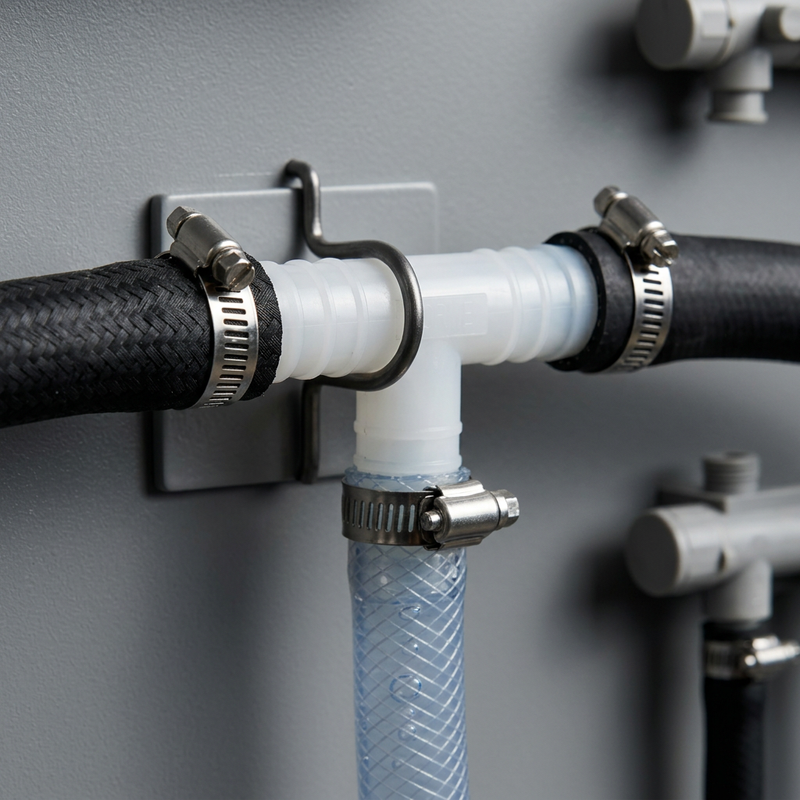

- Connection of hoses in T-shape for fluid and air lines
- Wherever fast and secure hose connections are required
- NORMAPLAST® SV TS T-Hose Connector in the selected size (D1)
Technical Data ▼
| Sizes at a glance NORMAPLAST® SV TS – T-Hose Connector | ||||
|---|---|---|---|---|
| Designation | D1 (mm) | D2 (mm) | L1~ (mm) | L3~ (mm) |
| TS 3 | 3 | 2.5 | 25 | 12.5 |
| TS 4 | 4 | 2.7 | 35 | 19.5 |
| TS 5 | 5 | 3 | 42 | 22 |
| TS 6 | 6 | 4 | 50 | 26 |
| TS 7 | 7 | 5 | 50 | 26 |
| TS 8 | 8 | 5.6 | 58 | 30 |
| TS 10 | 10 | 7 | 62.5 | 33.5 |
| TS 12 | 12 | 8.6 | 69 | 36 |
| TS 13 | 13 | 8.6 | 68 | 36 |
| TS 14 | 14 | 10 | 77.5 | 41.5 |
| TS 15 | 15 | 11 | 79.5 | 43.5 |
| TS 16 | 16 | 12 | 81 | 45 |
| TS 19 | 19 | 15 | 85 | 45 |
| TS 25 | 25 | 21 | 105 | 52.5 |
| Packaging Units | |
|---|---|
| Designation | PU (pieces) |
| TS 3 – TS 13 | 100 |
| TS 14 – TS 16 | 50 |
| TS 19 – TS 25 | 25 |
