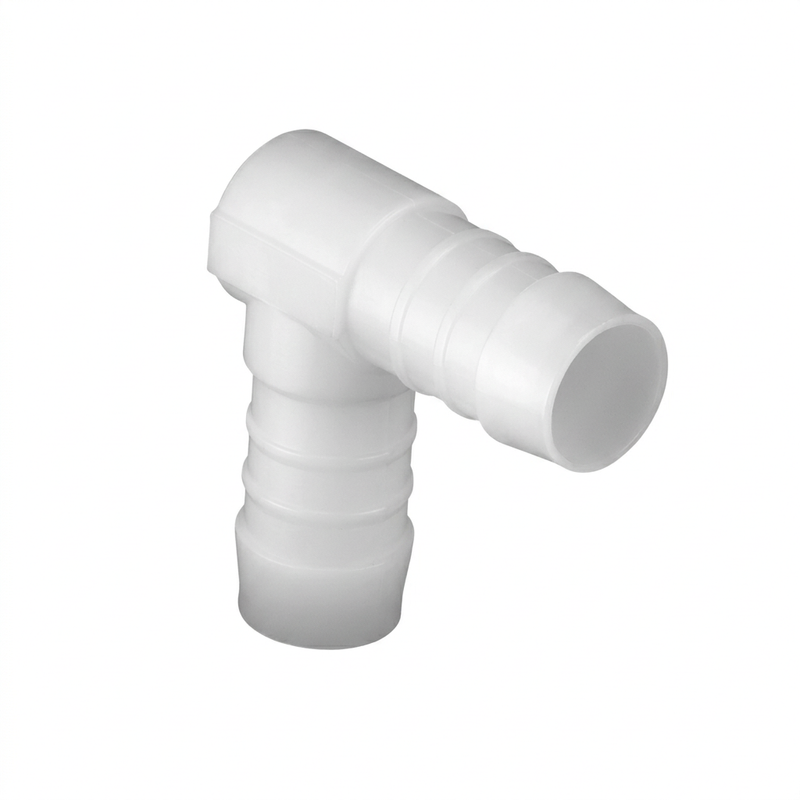

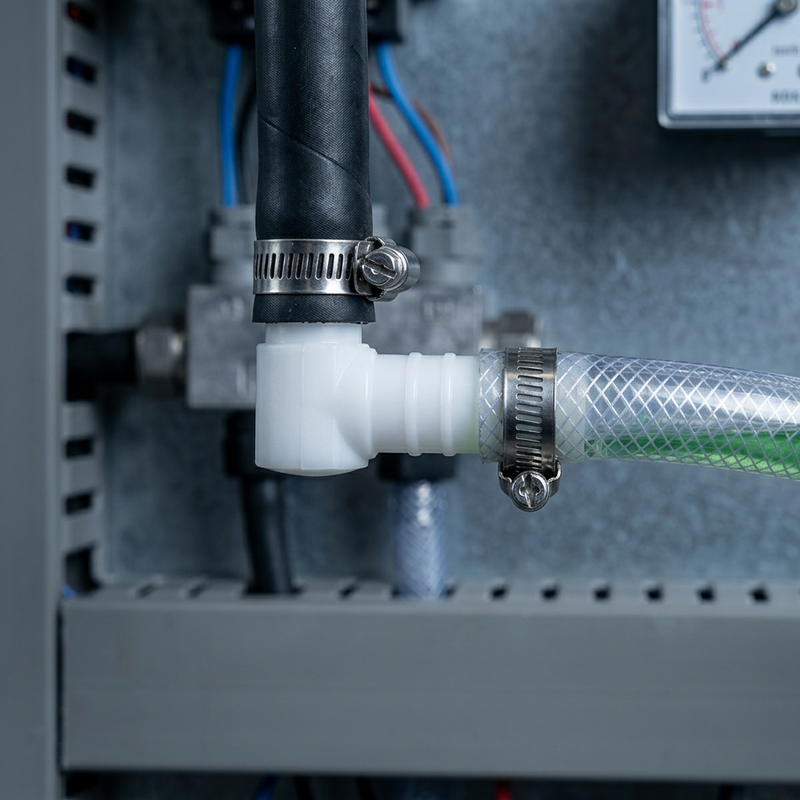

- Product: NORMAPLAST® SV WS Angle Hose Connector
- Material: Acetal copolymer (POM) – natural color
- Sizes (D1): 3 mm to 25 mm (13 variants)
- Overall lengths (L1): 12.5 mm to 52.5 mm (depending on size)
- Design: Angled (90°) with two connection spigots
- Ribbing: Secure hose fit due to ribbed spigots
- Application: Fast and easy connection of hoses in 90° angle configuration in industry and automotive construction
- Packaging unit: 25 to 100 pieces (depending on size)
Product Description ▼
The NORMAPLAST® SV WS Angle Hose Connector is the ideal solution for the quick and reliable connection of hoses in a 90° angle configuration. As a proven plastic hose and pipe connector, it safely, reliably, and cost-effectively connects media-carrying lines.
Thanks to its robust construction made of high-quality acetal copolymer (POM), the angle hose connector is ideally suited for use in automotive construction as well as in almost all industrial sectors. The ribbed spigots ensure a secure hose fit – simply push the hoses on, and you're done.
- High strength – reliable connection even under load
- Toughness and impact resistance – robust in daily use
- Low weight – lightweight plastic for weight-optimized applications
- Damping capability – reduces vibrations in the line
- Abrasion resistance – durable even with mechanical stress
- Ribbed spigots for secure hose fit without complicated assembly
- 90° angle design – ideal for confined installation spaces and changes of direction
- Wide range of sizes – 13 variants from 3 mm to 25 mm
- Automotive and vehicle engineering
- Mechanical engineering and industrial plants
- Connection of hoses with 90° change of direction for fluid and air lines
- Wherever quick and secure hose connections with angled deflection are required
- NORMAPLAST® SV WS Angle Hose Connector in the selected size (D1)
Technical Data ▼
| Overview of Sizes NORMAPLAST® SV WS – Angle Hose Connector | |||
|---|---|---|---|
| Designation | D1 (mm) | D2 (mm) | L1~ (mm) |
| WS 3 | 3 | 2.5 | 12.5 |
| WS 4 | 4 | 2.5 | 17.5 |
| WS 5 | 5 | 3 | 21 |
| WS 6 | 6 | 4 | 25 |
| WS 8 | 8 | 5.6 | 29 |
| WS 10 | 10 | 7 | 31 |
| WS 12 | 12 | 8.6 | 34.5 |
| WS 13 | 13 | 8.6 | 36.5 |
| WS 14 | 14 | 10 | 38.5 |
| WS 15 | 15 | 11 | 40 |
| WS 16 | 16 | 12 | 40.5 |
| WS 19 | 19 | 15 | 43.5 |
| WS 25 | 25 | 21 | 52.5 |
| Packaging Units | |
|---|---|
| Designation | Packaging Unit (Pcs.) |
| WS 3 – WS 14 | 100 |
| WS 15 – WS 16 | 100 |
| WS 19 | 50 |
| WS 25 | 25 |
