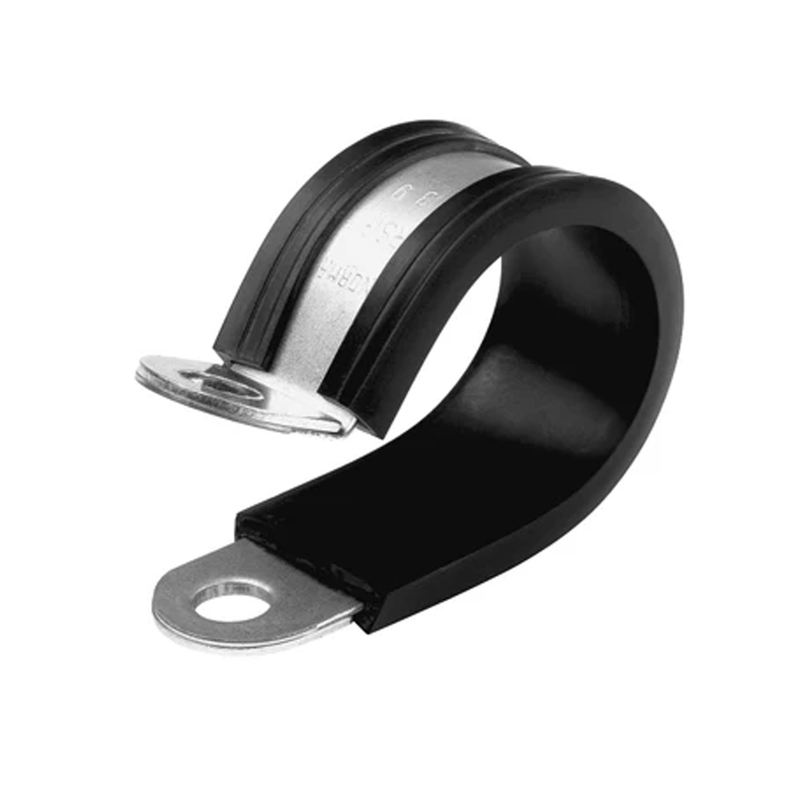

- Product: NORMAFIX® RSGU pipe retaining clamp according to DIN 3016
- Material: W1 – galvanized steel
- Bandwidths: 12 mm, 15 mm, 20 mm
- Clamping ranges: 6 mm to 40 mm (depending on bandwidth)
- Rubber profile: optionally available with EPDM rubber profile (vibration protection & sound insulation)
- Types: Type 0 (round), Type 1 (standard), Type 2 (open)
- Application: Fastening of pipes, cables, cable harnesses, cable conduits, hoses and other lines
Product Description ▼
The NORMAFIX® RSGU pipe retaining clamp is the reliable solution for securely fastening pipes, cables, cable harnesses, cable conduits, hoses and other lines. As a standard-compliant pipe retaining clamp according to DIN 3016, it impresses with its form-fitting and adaptable band, which ensures simplified assembly and secure fastening.
Thanks to the integrated support washers, the band is strengthened and protected from tearing out or loosening under extreme mechanical stress in the fastening area. The NORMAFIX® RSGU is optionally available with an EPDM rubber profile, which offers vibration protection, protection against creeping water, and sound insulation, and improves the form fit between the clamp and the clamping body. The product is made of W1 (galvanized steel).
- Form-fitting and adaptable band – simplified assembly and secure fastening
- Support washers – protects against tearing out or loosening under extreme mechanical stress
- Optionally with EPDM rubber profile – vibration protection, sound insulation & protection against creeping water
- Standard-compliant according to DIN 3016 – reliable quality for industrial applications
- Material W1 (galvanized steel) – proven corrosion protection for standard applications
- Three types available – Type 0 (round), Type 1 (standard), Type 2 (open)
- Can be equipped with sound insulation rubber on request
- Also available as a silicone rubber profile on request

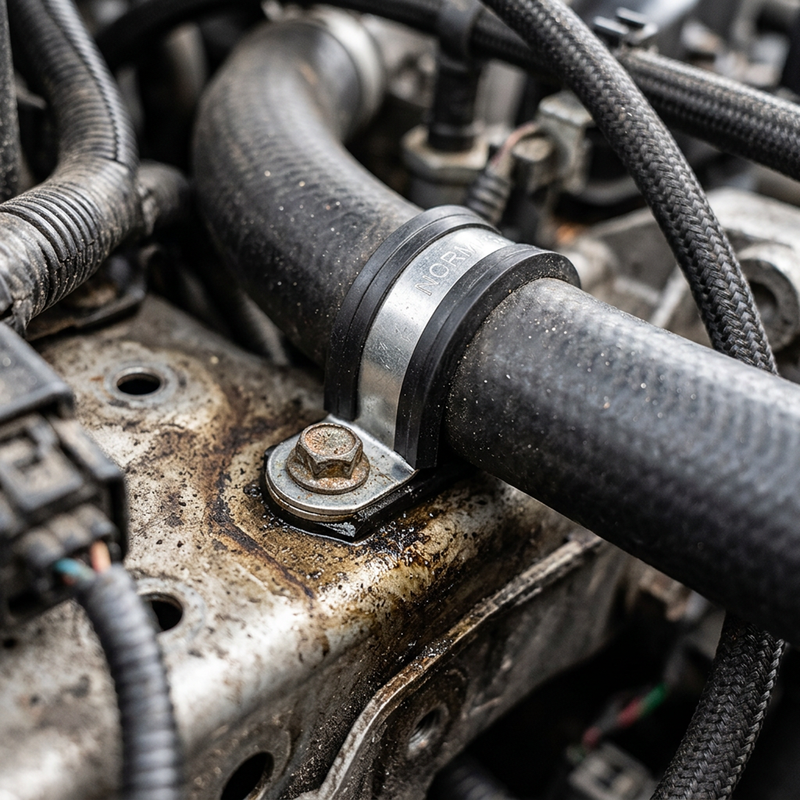

- Fastening of pipes and cable conduits
- Holding of cables and cable harnesses
- Fixing of hoses and other lines
- All types of fastenings and holders in industry and vehicle construction
- NORMAFIX® RSGU pipe retaining clamp in the selected variant (clamping range & bandwidth) – Delivery does not include screws and nuts
Technical Data ▼
| Screw Recommendation NORMAFIX® RSGU | ||
|---|---|---|
| Type | Bandwidth (mm) | Recommended Screw |
| RSGU | 12 | M 5 |
| RSGU | 15 | M 6 |
| RSGU | 20 | M 8 |
| Clamping Ranges & Bandwidths Overview – NORMAFIX® RSGU (Bandwidth 12 mm) | |||
|---|---|---|---|
| Clamping Range (mm) | Clamping Range (inch) | Bandwidth (mm) | Designation |
| 6 | 1/4 | 12 | RSGU 1.6/12 |
| 8 | 5/16 | 12 | RSGU 1.8/12 |
| 10 | 3/8 | 12 | RSGU 1.10/12 |
| 12 | 1/2 | 12 | RSGU 1.12/12 |
| 13 | 1/2 | 12 | RSGU 1.13/12 |
| 14 | 9/16 | 12 | RSGU 1.14/12 |
| 15 | 5/8 | 12 | RSGU 1.15/12 |
| 16 | 5/8 | 12 | RSGU 1.16/12 |
| 18 | 3/4 | 12 | RSGU 1.18/12 |
| 19 | 3/4 | 12 | RSGU 1.19/12 |
| 20 | 13/16 | 12 | RSGU 1.20/12 |
| 21 | 13/16 | 12 | RSGU 1.21/12 |
| 22 | 7/8 | 12 | RSGU 1.22/12 |
| Clamping Ranges & Bandwidths Overview – NORMAFIX® RSGU (Bandwidth 15 mm) | |||
|---|---|---|---|
| Clamping Range (mm) | Clamping Range (inch) | Bandwidth (mm) | Designation |
| 6 | 1/4 | 15 | RSGU 1.6/15 |
| 8 | 5/16 | 15 | RSGU 1.8/15 |
| 10 | 3/8 | 15 | RSGU 1.10/15 |
| 12 | 1/2 | 15 | RSGU 1.12/15 |
| 13 | 1/2 | 15 | RSGU 1.13/15 |
| 14 | 9/16 | 15 | RSGU 1.14/15 |
| 15 | 5/8 | 15 | RSGU 1.15/15 |
| 16 | 5/8 | 15 | RSGU 1.16/15 |
| 18 | 3/4 | 15 | RSGU 1.18/15 |
| 19 | 3/4 | 15 | RSGU 1.19/15 |
| 20 | 13/16 | 15 | RSGU 1.20/15 |
| 21 | 13/16 | 15 | RSGU 1.21/15 |
| 22 | 7/8 | 15 | RSGU 1.22/15 |
| 23 | 7/8 | 15 | RSGU 1.23/15 |
| 25 | 1 | 15 | RSGU 1.25/15 |
| 26 | 1 1/16 | 15 | RSGU 1.26/15 |
| 28 | 1 1/8 | 15 | RSGU 1.28/15 |
| 30 | 1 3/16 | 15 | RSGU 1.30/15 |
| 32 | 1 1/4 | 15 | RSGU 1.32/15 |
| 34 | 1 5/16 | 15 | RSGU 1.34/15 |
| 35 | 1 3/8 | 15 | RSGU 1.35/15 |
| Clamping Ranges & Bandwidths Overview – NORMAFIX® RSGU (Bandwidth 20 mm) | |||
|---|---|---|---|
| Clamping Range (mm) | Clamping Range (inch) | Bandwidth (mm) | Designation |
| 10 | 3/8 | 20 | RSGU 1.10/20 |
| 12 | 1/2 | 20 | RSGU 1.12/20 |
| 13 | 1/2 | 20 | RSGU 1.13/20 |
| 14 | 9/16 | 20 | RSGU 1.14/20 |
| 15 | 5/8 | 20 | RSGU 1.15/20 |
| 16 | 5/8 | 20 | RSGU 1.16/20 |
| 18 | 3/4 | 20 | RSGU 1.18/20 |
| 19 | 3/4 | 20 | RSGU 1.19/20 |
| 20 | 13/16 | 20 | RSGU 1.20/20 |
| 22 | 7/8 | 20 | RSGU 1.22/20 |
| 23 | 7/8 | 20 | RSGU 1.23/20 |
| 24 | 15/16 | 20 | RSGU 1.24/20 |
| 25 | 1 | 20 | RSGU 1.25/20 |
| 28 | 1 1/8 | 20 | RSGU 1.28/20 |
| 30 | 1 3/16 | 20 | RSGU 1.30/20 |
| 32 | 1 1/4 | 20 | RSGU 1.32/20 |
| 34 | 1 5/16 | 20 | RSGU 1.34/20 |
| 35 | 1 3/8 | 20 | RSGU 1.35/20 |
| 36 | 1 7/16 | 20 | RSGU 1.36/20 |
| 38 | 1 1/2 | 20 | RSGU 1.38/20 |
| 40 | 1 9/16 | 20 | RSGU 1.40/20 |
| Rubber Profile – EPDM Material Properties | ||
|---|---|---|
| Property | Value | Rating |
| Tensile Strength | min. 8 N/mm² | – |
| Elongation at Break | 350 % | – |
| Shore Hardness A | 70 ± 5 | – |
| Temperature Range | –40 to +120 °C | – |
| Weather / Ozone | – | very good |
| Aging / UV | – | very good |
| Fuel Storage | – | not suitable |
| Storage in Oils and Greases | – | not suitable |
| Alcohols | – | good |
| Acids | – | good |
| Alkalis | – | good |
