- Product: NORMAFIX® BS Fixing Clamp
- Type: BSL Type 510 according to DIN 72571 – Light Series for 1 line
- Material: W1 – thick-film passivated
- Band widths: 10 mm and 12 mm
- Material thicknesses: 1 mm and 1.5 mm
- Diameter ranges: ø 4 mm to ø 24 mm (15 variants)
- Order code: BSL 1 x ø DIN 72571
- Application: Quick and secure mounting of pipes, cables and protective conduits on structural elements
Product Description ▼
The NORMAFIX® BS fixing clamp is the reliable solution for the quick and easy mounting of pipes, cables and protective conduits on structural elements. As a fixing clamp of the light series (BSL) according to DIN 72571, it impresses with its stable band design and precise fit for simple and secure holding of the part to be fixed.
Thanks to its robust construction and high-quality processing from thick-film passivated W1 material, the fixing clamp is ideally suited for all industrial sectors where inexpensive and secure mounting is required. The clamp is manufactured in accordance with DIN 72571 and ensures reliable hold even under demanding conditions.
- Stable band design – for precise fit and secure hold
- Simple and secure holding of the part to be fixed
- Standard-compliant design according to DIN 72571 for standardized applications
- Thick-film passivated – increased corrosion protection
- Light series (BSL) – compact and weight-optimized design
- Wide diameter spectrum – ø 4 mm to ø 24 mm (15 variants)
- Cost-effective solution for industrial fastening tasks
- Easy mounting on structural elements with standard tools
- Mounting of pipes, cables and protective conduits on structural elements
- Vehicle construction and commercial vehicle technology
- Mechanical engineering and industrial plants
- Wherever inexpensive and secure mounting is required

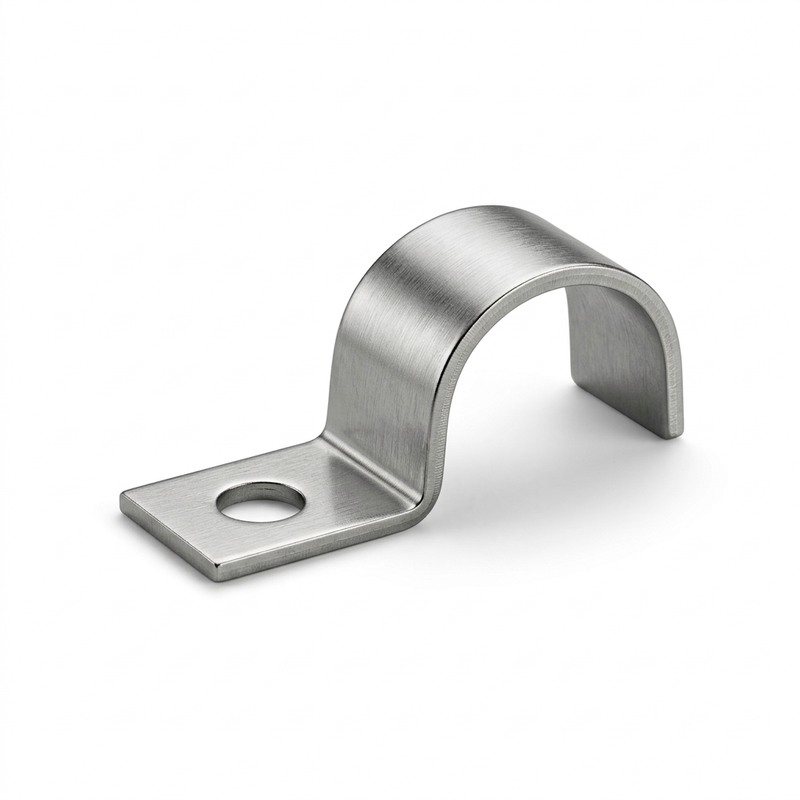

- NORMAFIX® BS Fixing Clamp BSL Type 510 according to DIN 72571 for 1 line in the selected variant (diameter)
Technical Data ▼
| NORMAFIX® BS – BSL Type 510 according to DIN 72571 for 1 line | |||||
|---|---|---|---|---|---|
| Diameter ø (mm) | l1 (mm) | l2 (mm) | Band Width b (mm) | Borehole d (mm) | Material Thickness s (mm) |
| 4 | 18 | 9 | 10 | 4.8 | 1 |
| 5 | 18.5 | 9 | 10 | 4.8 | 1 |
| 6 | 20 | 10 | 10 | 4.8 | 1 |
| 7 | 20.5 | 10 | 10 | 4.8 | 1 |
| 8 | 22 | 11 | 10 | 4.8 | 1 |
| 9 | 22.5 | 11 | 10 | 4.8 | 1 |
| 10 | 23 | 11 | 10 | 4.8 | 1 |
| 11 | 30 | 15 | 12 | 5.8 | 1.5 |
| 12 | 30.5 | 16 | 12 | 5.8 | 1.5 |
| 15 | 34 | 18 | 12 | 5.8 | 1.5 |
| 16 | 35 | 18 | 12 | 5.8 | 1.5 |
| 18 | 35.5 | 18 | 12 | 7 | 1.5 |
| 20 | 37.5 | 18 | 12 | 7 | 1.5 |
| 22 | 39.5 | 20 | 12 | 7 | 1.5 |
| 24 | 41.5 | 21 | 12 | 7 | 1.5 |
