- Product: NORMAFIX® BS Fixing Clamp
- Type: BSL Type 512 according to DIN 72573 – Light Series for 3 lines
- Material: W1 – thick-film passivated
- Band widths: 10 mm and 12 mm
- Material thicknesses: 1 mm and 1.5 mm
- Diameter ranges: ø 4 mm to ø 22 mm (11 variants)
- Order code: BSL 3 x ø DIN 72573
- Application: Fast and secure mounting of three pipes, cables or cable protection conduits to structures
Item Description ▼
The NORMAFIX® BS Fixing Clamp is the reliable solution for fast and easy mounting of three pipes, cables or cable protection conduits to structures. As a fixing clamp of the light series (BSL) according to DIN 72573, it impresses with its stable band design and precise fit for easy and secure holding of the parts to be fixed.
Thanks to its robust construction and high-quality workmanship from thick-film passivated W1 material, the fixing clamp is ideally suited for all industrial sectors where inexpensive and secure mounting is required. The clamp is manufactured in accordance with DIN 72573 and ensures reliable hold even under demanding conditions.
- Stable band design – for precise fit and secure hold
- Easy and secure holding of three lines simultaneously
- Standard-compliant design according to DIN 72573 for standardized applications
- Thick-film passivated – increased corrosion protection
- Light Series (BSL) – compact and weight-optimized design
- Space-saving triple mounting – fasten three lines with one clamp
- Cost-effective solution for industrial fastening tasks
- Easy mounting on structures with standard tools

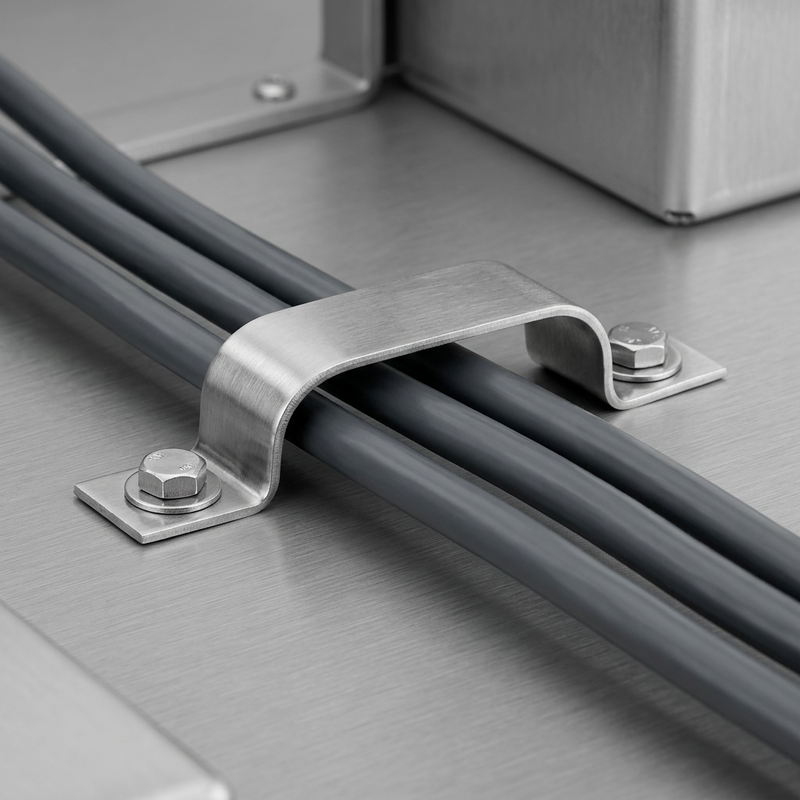

- Mounting of three pipes, cables or cable protection conduits to structures
- Vehicle construction and commercial vehicle technology
- Mechanical engineering and industrial plants
- Wherever an inexpensive and secure triple mounting is required

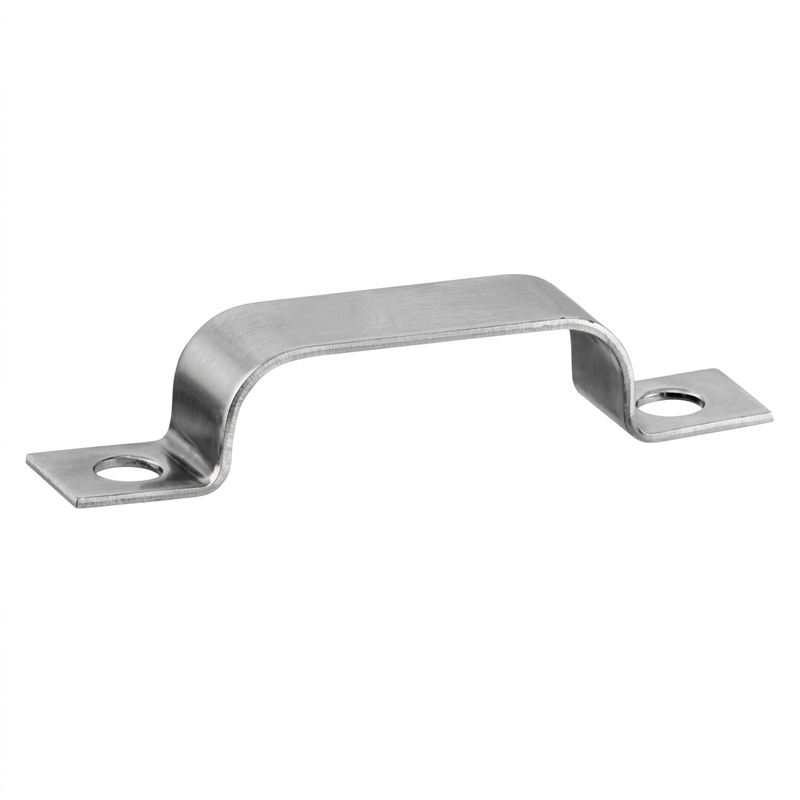

- NORMAFIX® BS Fixing Clamp BSL Type 512 according to DIN 72573 for 3 lines in the selected variant (diameter)
Technical Data ▼
| NORMAFIX® BS – BSL Type 512 according to DIN 72573 for 3 Lines | |||||
|---|---|---|---|---|---|
| Diameter ø (mm) | l1 (mm) | l2 (mm) | Band Width b (mm) | Bore d (mm) | Material Thickness s (mm) |
| 4 | 39 | 27 | 10 | 4.8 | 1 |
| 5 | 41 | 29 | 10 | 4.8 | 1 |
| 6 | 45 | 33 | 10 | 4.8 | 1 |
| 7 | 47 | 35 | 10 | 4.8 | 1 |
| 8 | 51 | 39 | 10 | 4.8 | 1 |
| 10 | 55 | 43 | 10 | 4.8 | 1 |
| 12 | 71 | 57 | 12 | 5.8 | 1.5 |
| 15 | 81 | 67 | 12 | 5.8 | 1.5 |
| 18 | 87 | 73 | 12 | 7 | 1.5 |
| 20 | 93 | 79 | 12 | 7 | 1.5 |
| 22 | 99 | 85 | 12 | 7 | 1.5 |
