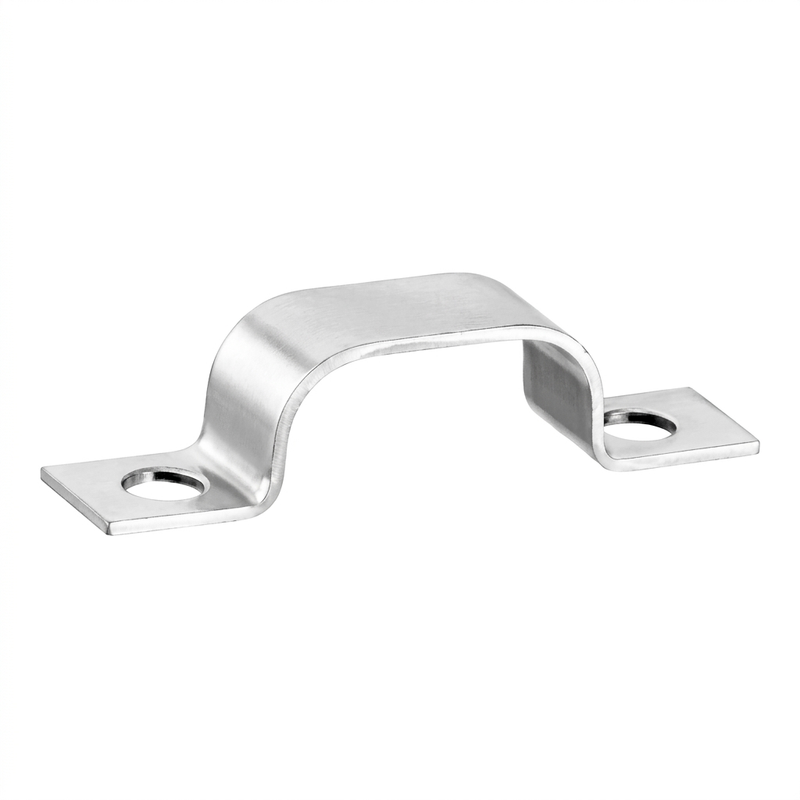

- Product: NORMAFIX® BS Mounting Clamp
- Type: BSL Type 512 according to DIN 72573 – Light series for 2 lines
- Material: W1 – thick-layer passivated
- Bandwidths: 10 mm and 12 mm
- Material thicknesses: 1 mm and 1.5 mm
- Diameter ranges: ø 4 mm to ø 22 mm (11 variants)
- Order code: BSL 2 x ø DIN 72573
- Application: Quick and secure mounting of two pipes, cables or cable conduits to structural elements
Product Description ▼
The NORMAFIX® BS mounting clamp is the reliable solution for quick and easy mounting of two pipes, cables, or cable conduits to structural elements. As a light series (BSL) mounting clamp according to DIN 72573, it impresses with its robust band design and precise fit for simple and secure retention of the fixed parts.
Thanks to its robust construction and high-quality finish made of thick-layer passivated W1 material, the mounting clamp is ideally suited for all industrial sectors where cost-effective and secure mounting is required. The clamp is manufactured in accordance with DIN 72573 and guarantees reliable hold even under demanding conditions.
- Robust band design – for precise fit and secure hold
- Simple and secure retention of two lines simultaneously
- Standard-compliant design according to DIN 72573 for standardized applications
- Thick-layer passivated – increased corrosion protection
- Light series (BSL) – compact and weight-optimized construction
- Space-saving double mounting – fasten two lines with one clamp
- Cost-effective solution for industrial fastening tasks
- Easy mounting on structural elements with standard tools
- Mounting of two pipes, cables or cable conduits to structural elements
- Vehicle construction and commercial vehicle technology
- Mechanical engineering and industrial plants
- Wherever cost-effective and secure double mounting is required
- NORMAFIX® BS mounting clamp BSL Type 512 according to DIN 72573 for 2 lines in the selected variant (diameter)
Technical Data ▼
| NORMAFIX® BS – BSL Type 512 according to DIN 72573 for 2 lines | |||||
|---|---|---|---|---|---|
| Diameter ø (mm) | l1 (mm) | l2 (mm) | Bandwidth b (mm) | Borehole d (mm) | Material thickness s (mm) |
| 4 | 33 | 21 | 10 | 4.8 | 1 |
| 5 | 35 | 23 | 10 | 4.8 | 1 |
| 6 | 38 | 26 | 10 | 4.8 | 1 |
| 7 | 39 | 27 | 10 | 4.8 | 1 |
| 8 | 42 | 30 | 10 | 4.8 | 1 |
| 10 | 44 | 32 | 10 | 4.8 | 1 |
| 12 | 58 | 44 | 12 | 5.8 | 1.5 |
| 15 | 66 | 52 | 12 | 5.8 | 1.5 |
| 18 | 69 | 55 | 12 | 7 | 1.5 |
| 20 | 73 | 59 | 12 | 7 | 1.5 |
| 22 | 77 | 63 | 12 | 7 | 1.5 |
